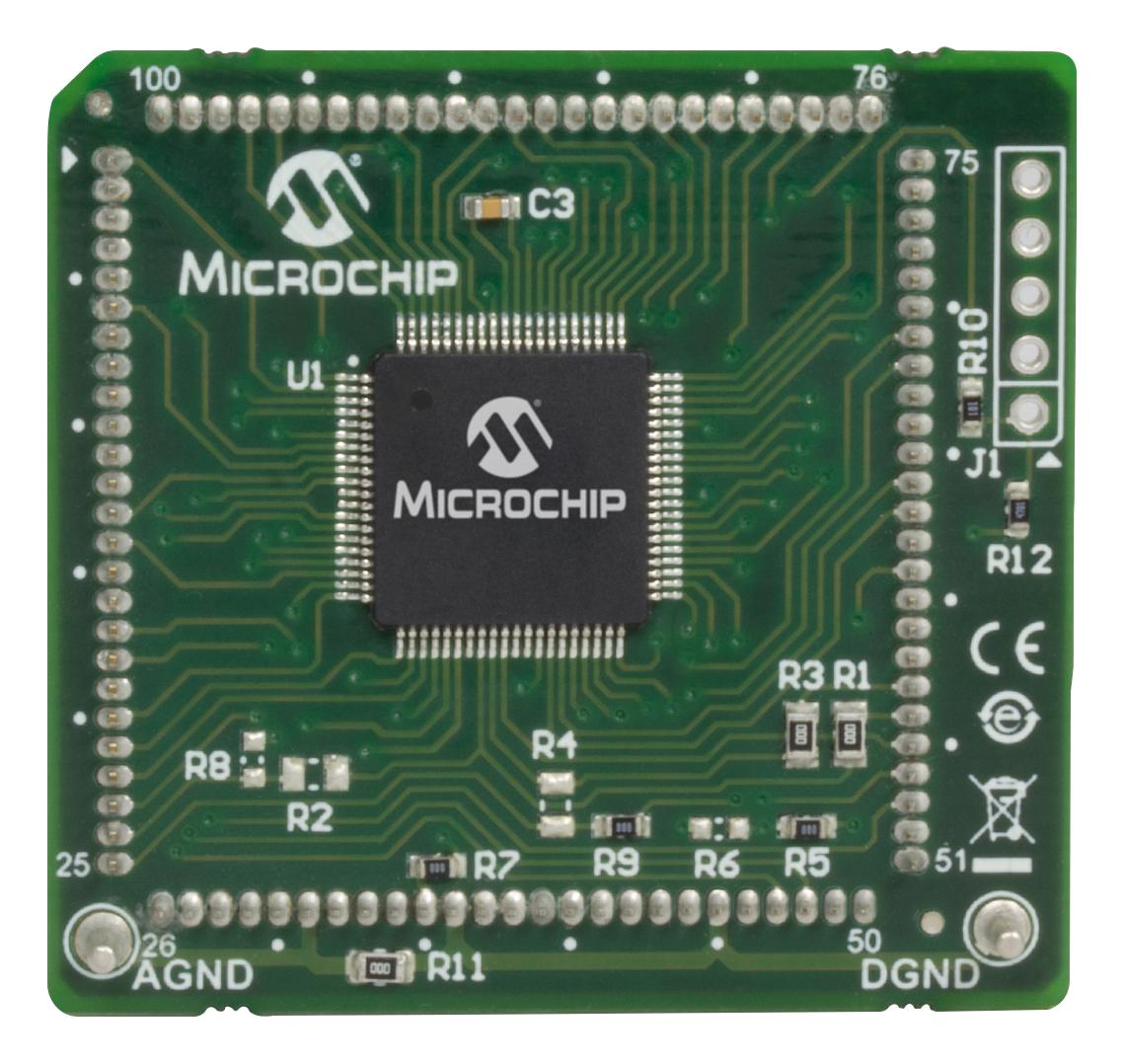

Microchip Technology MA330039 Motor Control Module
The dsPIC33CH128MP508 Motor Control Plug-In Module is designed for demonstrating and developing motor control applications with high-resolution PWM capabilities. It features a dual-core 16-bit Digital Signal Controller, enabling independent operation of the Master and Slave cores. Compatible with various development boards, it facilitates single motor control through integrated peripherals like ADC and PWM. The module includes external op amp connections for precise analog signals and supports dual debug modes via dedicated headers. Built for robust motor control system testing, it offers straightforward interface options and safety features for reliable operation.
Microchip Technology MA330039 Motor Control Module Specifications:
- Device: dsPIC33CH128MP508
- Controller Type: Dual-core 16-bit Digital Signal Controller
- PWM Resolution: High-resolution PWM with fine edge placement
- Peripheral Support: ADC, PWM, op amp connections
- Compatibility: Various dsPICDEM Motor Control Development Boards
- Debug Interface: Dual Debug Mode with dedicated ICSP™ interface
- Power Requirements: Digital Power (DVDD), Analog Power (AVDD), Digital Ground (DGND), Analog Ground (AGND)
- Physical Form: Plug-In Module (PIM), designed for 100-pin PIM interface
- Use Case: Demonstration and development of motor control applications, capable of driving a single motor through inverter-side interface, robust for industrial testing applications
Buy the Microchip MA330039 – Reliable Motor Control Module for Industrial Applications
Experience the power of high-resolution PWM control with our Motor Control Module designed for industrial and automation applications. The module features a dual-core 16-bit DSC, supporting precise motor management through advanced peripherals like ADC and external op amps. Compatible with multiple development boards, it simplifies testing and development of motor systems. Easy to interface with robust safeguards, this module is perfect for engineers seeking reliable performance in demanding environments. Purchase online today and accelerate your motor control innovations with Microchip’s trusted solutions.
Get Microchip MA330039 today—built for precision motor control and long-lasting durability in industrial systems.
Frequently Asked Questions
Where can I buy Microchip Technology MA330039?
You can click on the BUY or RFQ button to purchase MA330039 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MA330039?
You can download the MA330039 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MA330039?
Microchip Technology
