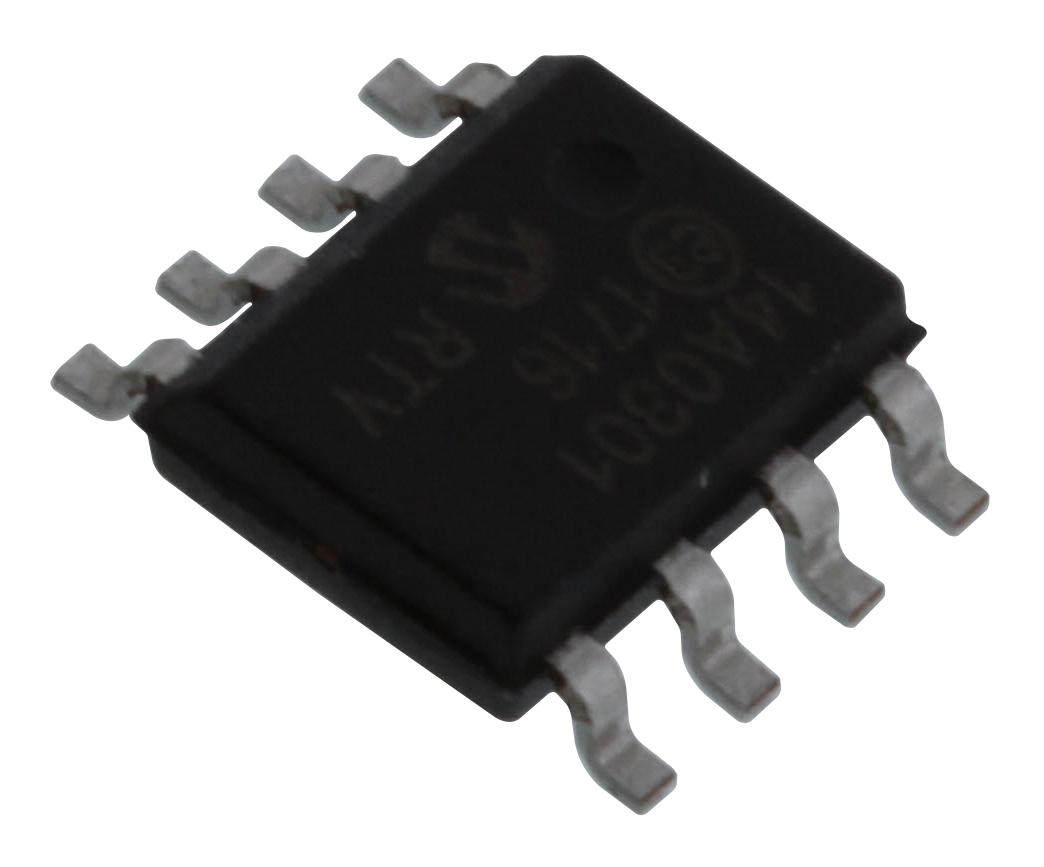

Microchip Technology MCP14A0301ESN High-Speed MOSFET Driver
The MCP14A0301/2 are high-speed MOSFET drivers capable of delivering up to 3.0A peak current and operate within a 4.5V to 18V supply range. They feature low shoot-through current, fast rise and fall times, short propagation delays, and enable control with hysteresis and internal pull-up. Available in space-saving packages like MSOP, SOIC, and WDFN, these devices are ideal for high-frequency switching power supplies, motor and solenoid drive, line drivers, and level translators, offering high capacitive load drive capability and robust latch-up protection.
Microchip Technology MCP14A0301ESN High-Speed MOSFET Driver Specifications:
- Peak Output Current: 3.0A
- Supply Voltage Range: 4.5V to 18V
- Output Drive Capability: 1800 pF in 13 ns (typical)
- Switching Times: 15 ns (tp1), 18 ns (tp2) (typical)
- Supply Current: 360 pA (typical)
- Input Threshold Voltage: Low with hysteresis and internal pull-up
- Enable Pin: Active high with hysteresis and internal pull-up
- Package Types: MSOP, SOIC, WDFN
- Reverse Current Tolerance: Up to 500 mA latch-up resistant
- Maximum Junction Temperature: +150°C
- Operating Temperature Range: -40°C to +125°C
- ESD Protection: Up to 2 kV (HBM), 200V (MM)
Buy the Microchip MCP14A0301 – Reliable MOSFET Driver for Industrial Applications
Purchase the Microchip MCP14A0301 online today to access a high-speed, high-current MOSFET driver with wide voltage operation, low shoot-through current, and fast switching times. Perfect for switching power supplies, motor, and solenoid drives, it offers robust latch-up protection, efficient power handling, and reliable operation in compact packages. Get your device now and optimize your high-frequency switching and load driving applications with this durable and efficient component designed for demanding industrial and electronics projects.
Order your Microchip MCP14A0301 high-speed MOSFET driver today and enhance your power switching and motor control projects with dependable performance.
Frequently Asked Questions
Where can I buy Microchip Technology MCP14A0301ESN?
You can click on the BUY or RFQ button to purchase MCP14A0301ESN from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP14A0301ESN?
You can download the MCP14A0301ESN datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP14A0301ESN?
Microchip Technology
