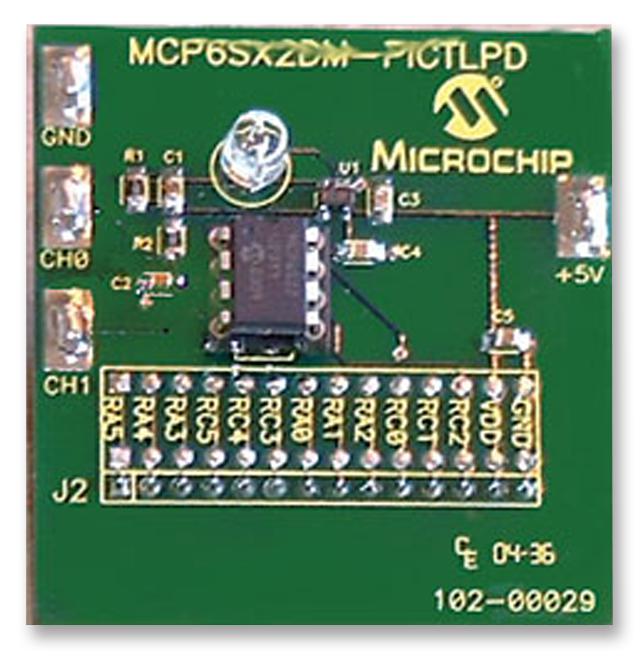

Microchip Technology MCP6SX2DMPCTLPD Photodiode Evaluation Board
The MCP6SX2DMPCTLPD is a high-performance photodiode evaluation board featuring a PNZ334 photodiode, MCP6001U op amp as transimpedance amplifier, and MCP6S22 or MCP6S92 PGA. The board converts incident light into a current, which is amplified into a voltage for signal processing. It includes a 10-bit ADC, buffer circuitry, and multiple gain settings. Compatible with the PICkit 1 and Signal Analysis PICtail Daughter Board, it supports precise measurement in sensing, instrumentation, industrial automation, and research applications. Ideal for test, measurement, and educational projects requiring flexible photodiode interface and signal conditioning.
Microchip Technology MCP6SX2DMPCTLPD Photodiode Evaluation Board Specifications:
- Photodiode: PNZ334 for light detection
- Operational Amplifier: MCP6001U, transimpedance configuration
- Programmable Gain Amplifiers: MCP6S22 or MCP6S92
- ADC Resolution: 10-bit analog-to-digital converter
- Power Supply: +5V, 2.5V to 5.5V operation range
- Output Buffer: Buffered voltage signal from transimpedance amplifier
- Input Channels: Photodiode input and auxiliary sensor input
- Gain Settings: Multiple selectable gains for signal amplification
- Interface: SPI bus control for PGA
- Connectors: Header for signals and power
- Design: Two-layer PCB with ground plane, surface-mount components
- Supports: Signal measurement, optical sensing, industrial automation, educational use,
Buy the Buy Microchip Photodiode PGA Part Number MCP6SX2DMPCTLPD Online
Enhance your optical sensing projects with this high-precision photodiode evaluation board featuring programmable gain, transimpedance amplifier, and 10-bit ADC. Specifically designed for sensitivity and signal accuracy, it supports industrial, medical, and laboratory applications. Its flexible interface with SPI control allows quick configuration of gain and input channels. Compatible with the PICkit 1 and signal analysis tools, it simplifies setup for testing, measurement, and sensor development, making it an ideal choice for engineers, researchers, and hobbyists seeking a complete and versatile photodiode measurement solution.
Buy Microchip MCP6SX2DMPCTLPD now and experience unmatched reliability and performance in high-impedance sensor measurement and signal conditioning.
