Microchip Technology MCP14A0901ESN High-Speed MOSFET Driver
The MCP14A0901/2 devices are high-speed MOSFET drivers capable of delivering a peak current of up to 9.0A when powered from a single supply voltage ranging from 4.5V to 18V. They feature low shoot-through current, fast rise and fall times, and matched propagation delays, making them suitable for high switching frequency applications. These drivers can handle large capacitive loads up to 10,000 pF within 24 nanoseconds, have short delay times of approximately 27 nanoseconds, and operate with low supply current of around 360 microamps. They include low-voltage threshold inputs with hysteresis, are latch-up protected against up to 500mA reverse current, and are ideal for power supplies and motor drive/control applications.
Microchip Technology MCP14A0901ESN High-Speed MOSFET Driver Specifications:
- Peak Output Current: 9.0A
- Supply Voltage Range: 4.5V to 18V
- Capacitive Load Drive Capability: 10,000 pF in 24 ns
- Rise and Fall Time: approximately 27 ns
- Short Delay Times: 27 ns (tp; and tp2)
- Low Supply Current: 360 µA
- Input Voltage Threshold with Hysteresis
- Latch-Up Protected: Withstands 500 mA Reverse Current
- Package Types: 8-Lead MSOP, 8-Lead SOIC, 8-Lead 2x3 TDFN

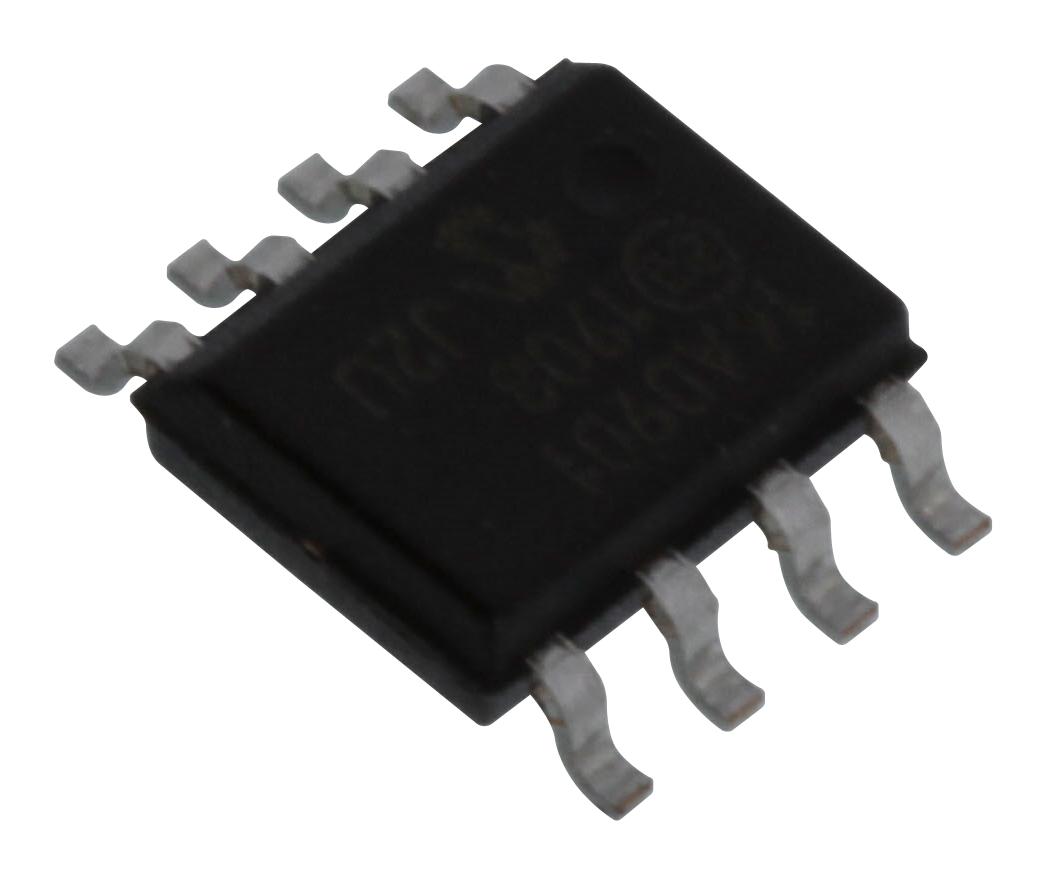

Buy the Microchip MCP14A0901 – Reliable MOSFET Driver for Industrial Applications
Get the Microchip MCP14A0901 high-current MOSFET driver online today. Perfect for power supplies, motor control, and high-frequency switching, this device offers a peak current of 9A, operates from 4.5V to 18V, and features fast rise and fall times within 27 nanoseconds. Its low supply current of around 360 microamps and large capacitive load handling up to 10,000 pF ensure excellent performance in demanding industrial and automotive applications. Secure your stock now for reliable, high-speed switching solutions.
Order your Microchip MCP14A0901 high-current MOSFET driver today and equip your projects with dependable, high-speed switching performance.
Frequently Asked Questions
Where can I buy Microchip Technology MCP14A0901ESN?
You can click on the BUY or RFQ button to purchase MCP14A0901ESN from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP14A0901ESN?
You can download the MCP14A0901ESN datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP14A0901ESN?
Microchip Technology
