Microchip Technology MCP150110ESN Voltage Reference
The MCP1501 high-precision buffered voltage reference offers a low drift of 50 ppm/°C, with initial accuracy of 0.1%. Operating from -40°C to +125°C, it sinks and sources 20 mA. Available in various packages including SOT-23, SOIC, and WDFN, it features low noise (<0.1 UVp.p), line regulation of 50 ppm/V, and load regulation of 40 ppm/mA. Its internal bandgap reference, combined with chopper amplifier architecture, ensures high stability and minimal drift, making it ideal for precision data acquisition, medical equipment, industrial controls, and battery-powered devices.
Microchip Technology MCP150110ESN Voltage Reference Specifications:
- Operating Temperature Range: -40°C to +125°C
- Initial Accuracy: 0.1%
- Temperature Coefficient: 50 ppm/°C
- Line Regulation: 50 ppm/V maximum
- Load Regulation: 40 ppm/mA maximum
- Output Noise (10 Hz to 10 kHz): < 0.1 UVp.p
- Sinking/Sourcing Current: 20 mA
- Input Voltage Range: 1.65V to 5.5V
- Power Supply Rejection Ratio (PSRR): 94 dB at 1 kHz
- Package Types: 6-Lead SOT-23, 8-Lead SOIC, 8-Lead WDFN
- Physical Dimensions: SOT-23 (2.80 x 2.50 mm), SOIC (4.90 x 3.90 mm), WDFN (2.00 x 2.00 mm)

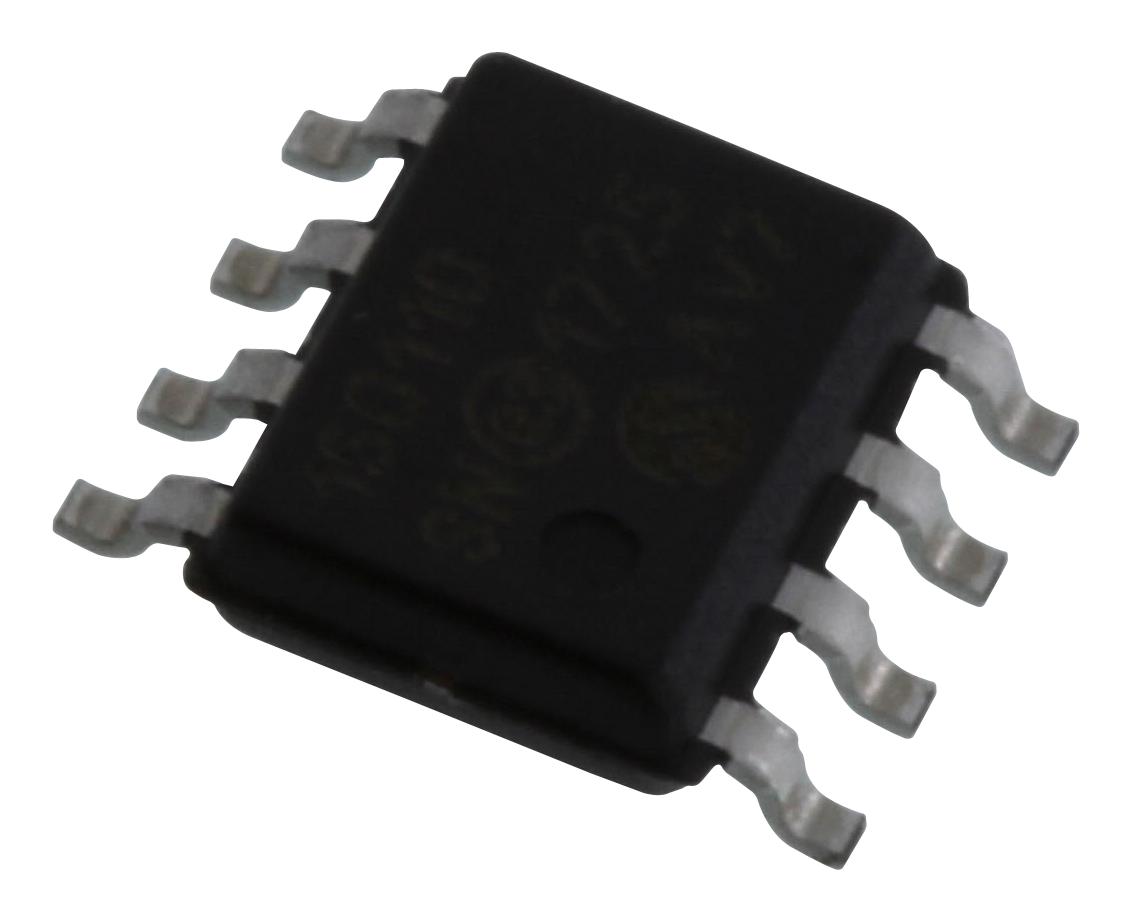

Buy the Buy Microchip MCP1501 Part Number MCP150110ESN Online
Purchase the MCP1501 high-precision buffered voltage reference online today. Enjoy fast delivery and reliable performance in critical data acquisition, medical, and industrial systems. With an accuracy of 0.1%, low noise, and a temperature coefficient of 50 ppm/°C, this device ensures stable, accurate voltage output across wide temperature ranges. Its various package options, including SOT-23, SOIC, and WDFN, make it versatile for different applications. Order now to benefit from Microchip’s quality and quick shipping, and ensure your project’s success.
Buy Microchip MCP1501 now and experience unmatched reliability and performance with low drift voltage reference technology, ideal for precision applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP150110ESN?
You can click on the BUY or RFQ button to purchase MCP150110ESN from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP150110ESN?
You can download the MCP150110ESN datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP150110ESN?
Microchip Technology
