Microchip Technology MCP47FVB28EMQ Octal DAC
The MCP47FVB28 is an octal-channel 12-bit voltage output DAC with nonvolatile EEPROM memory, I2C interface, and adjustable output gain. It offers high accuracy, low power consumption, and supports multiple voltage reference sources including internal band gap, external buffered/unbuffered Vrer pin, and device Vpp. Its low-noise, rail-to-rail output buffer can drive resistive loads above 5kΩ. The device supports power-down modes, WiperLock technology for secure settings, and high-speed I2C communication up to 3.4 Mbps, suitable for precision instrumentation, motor control, and calibration applications.
Microchip Technology MCP47FVB28EMQ Octal DAC Specifications:
- Resolution: 12-bit (4096 steps)
- Number of channels: 8
- Voltage Reference Sources: internal band gap, external buffered/unbuffered Vrer, device Vpp
- Output Voltage Range: Vgg to Vpp or GxVpp depending on reference source and gain
- Output Buffer: Rail-to-rail, low noise, capable of driving loads >5kΩ
- Power Supply Voltage: 2.7V to 5.5V (full), 1.8V to 2.7V (reduced specs)
- Power Consumption: Normal operation < 1.6 mA, Power-down < 680 nA
- Interface: I2C, supports Standard, Fast, and High-Speed modes up to 3.4 Mbps
- EEPROM Memory: Nonvolatile, supports custom reset and calibration data, EEPROM endurance >1 million cycles
- Temperature Range: -40°C to +125°C
- Package Options: 20-lead VQFN (5x5mm), TSSOP (20-lead)
- Features: WiperLock for security, configurable gain (1x/2x/4x), power-down modes, high-impedance output in power-down

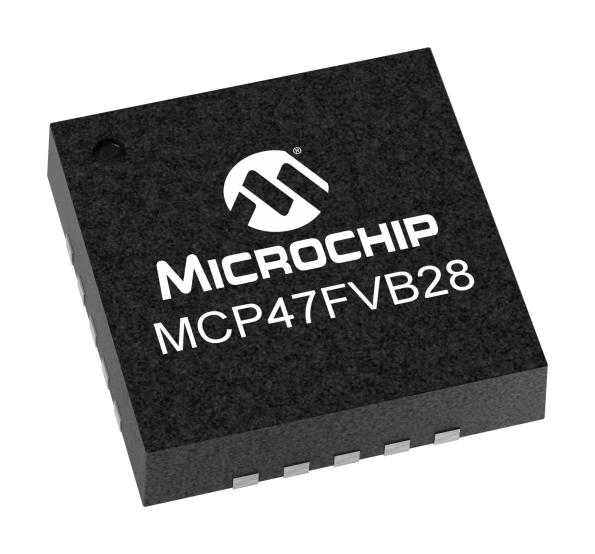

Buy the Buy Microchip MCP47FVB28EMQ 12-Bit Octal DAC Part Number MCP47FVB28EMQ Online
Order the Microchip MCP47FVB28EMQ today for your precision voltage output needs. Its high-resolution 12-bit DAC supports multiple voltage references, secure WiperLock settings, and robust I2C communication up to 3.4 Mbps. Ideal for calibration, sensor adjustment, motor control, and portable instrumentation, this device offers low power consumption, EEPROM memory for retaining configurations, and a versatile package suitable for space-constrained applications. Experience reliable performance and secure operation, ensuring your projects meet demanding accuracy and stability standards.
Get Microchip MCP47FVB28EMQ today—designed for high-precision and secure voltage output with EEPROM memory, supporting up to 3.4 Mbps I2C interface.
