Microchip Technology MCP1501T10ECHY Voltage Reference
The MCP1501 is a high-precision buffered voltage reference designed for applications requiring low drift and high accuracy across a wide temperature range. It features an initial accuracy of 0.1%, a maximum temperature coefficient of 50 ppm/°C, and low operating current of 140 pA. Available in various packages including 6-Lead SOT-23, 8-Lead SOIC, and 8-Lead WDFN, it provides excellent line and load regulation, low noise, and stable output for data acquisition, medical, and industrial control systems. Its chopper architecture minimizes offset and drift, ensuring reliable performance in critical applications.
Microchip Technology MCP1501T10ECHY Voltage Reference Specifications:
- Operating Temperature Range: —40°C to +125°C
- Initial Accuracy: 0.1%
- Maximum Temperature Coefficient: 50 ppm/°C
- Line Regulation: 50 ppm/V
- Load Regulation: 40 ppm/mA
- Output Noise: 27 uVRMS (10 Hz to 10 kHz)
- Supply Voltage Range: 1.65V to 5.5V
- Maximum Output Current: 20 mA (sinking and sourcing)
- Operating Current: 140 pA typical
- Package Types: 6-Lead SOT-23, 8-Lead SOIC, 8-Lead WDFN
- Input Voltage (Vpp): 1.65V to 5.5V
- Output Voltage Options: 1.024V, 1.250V, 1.800V, 2.048V, 2.500V, 3.000V, 3.300V, 4.096V
- Output Voltage Hysteresis: Specified with temperature cycling, minimal variation
- Dropout Voltage: Typically 200 mV at 5 mA load
- Power Supply Rejection Ratio: 94 dB at 1.024V option

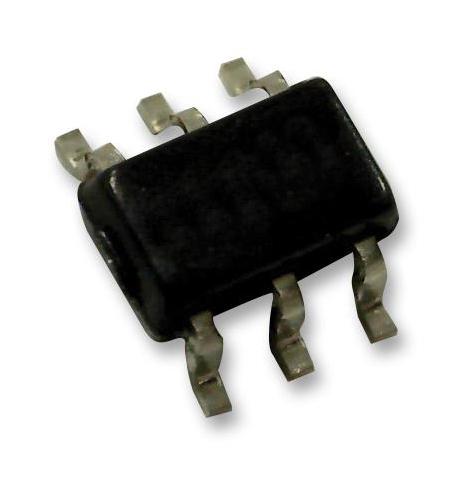

Buy the Buy Microchip MCP1501 Part Number MCP1501T10ECHY Online
Order the Microchip MCP1501T10ECHY voltage reference online today to ensure your precision circuits and data acquisition systems operate reliably. Designed for low drift and high accuracy, it offers excellent line and load regulation, ultra-low noise, and stable output across wide temperature ranges. Perfect for medical devices, industrial controls, and battery-powered systems, this high-performance component guarantees consistent voltage reference performance. Purchase now for fast delivery and dependable operation in your critical electronic projects.
Get Microchip MCP1501T10ECHY today—built for precision and long-lasting durability in high-accuracy voltage reference applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1501T10ECHY?
You can click on the BUY or RFQ button to purchase MCP1501T10ECHY from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1501T10ECHY?
You can download the MCP1501T10ECHY datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1501T10ECHY?
Microchip Technology
