Microchip Technology MCP16363TENMX High Efficiency Buck Converter
The MCP16363 is a high-efficiency, fixed-frequency, step-down DC-DC converter operating from input voltages up to 48V. It features a 2.2 MHz switching frequency, internal compensation, soft-start, and overtemperature protection, making it suitable for automotive, industrial, medical, and distributed power applications. It supports PWM operation with frequency dithering to minimize EMI, and enables precise output regulation from 2.0V to 24V at currents up to 3A. Its compact 8-lead VDFN package ensures space-saving design and reliable thermal performance.
Microchip Technology MCP16363TENMX High Efficiency Buck Converter Specifications:
- Input Voltage Range: 4.0V to 48V
- Output Voltage Range: 2.0V to 24V
- Switching Frequency: 2.2 MHz with +10% dithering (MCP16363)
- Output Current: Up to 3A
- Switching Mode: PWM/PFM with automatic mode switching
- Package: 8-Lead VDFN, 3x3 mm with exposed pad
- Overtemperature Protection: 155°C trip, 125°C restart
- Undervoltage Lockout: 3.4V stop, 4V start
- Soft-start Time: Approximately 750µs
- Power Good Output: Open-drain, high at 93% of regulation voltage
- Efficiency: Up to 90% depending on load
- Operating Temperature Range: -40°C to +125°C
- Protection Features: Cycle-by-cycle peak current limit, OV protection, UV lockout
- Control Architecture: Peak Current Mode Control with internal slope compensation

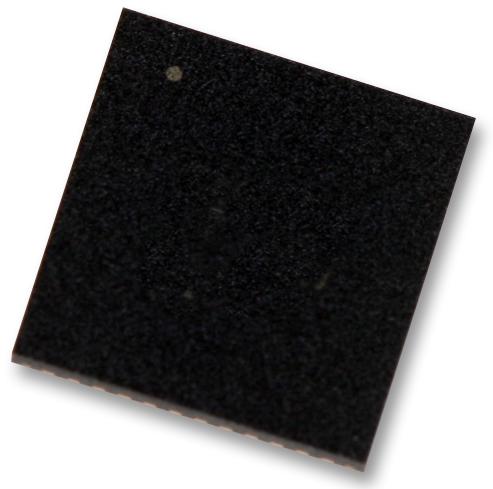

Buy the Buy Microchip MCP16363 Part Number MCP16363TENMX Online
Order the Microchip MCP16363 today to ensure your designs benefit from high-efficiency step-down regulation up to 48V with 3A current capacity. Featuring a 2.2 MHz fixed switching frequency and integrated protection features, this compact module is ideal for automotive, industrial, medical, and distributed power applications. Its internal PWM/PFM modes, soft-start, and overtemperature protection enable reliable and efficient operation across temperature ranges from -40°C to +125°C. Secure fast delivery by purchasing online now and enhance your power management solutions with ease.
Buy Microchip MCP16363 now and experience unmatched reliability and performance in high-efficiency switching power supplies.
