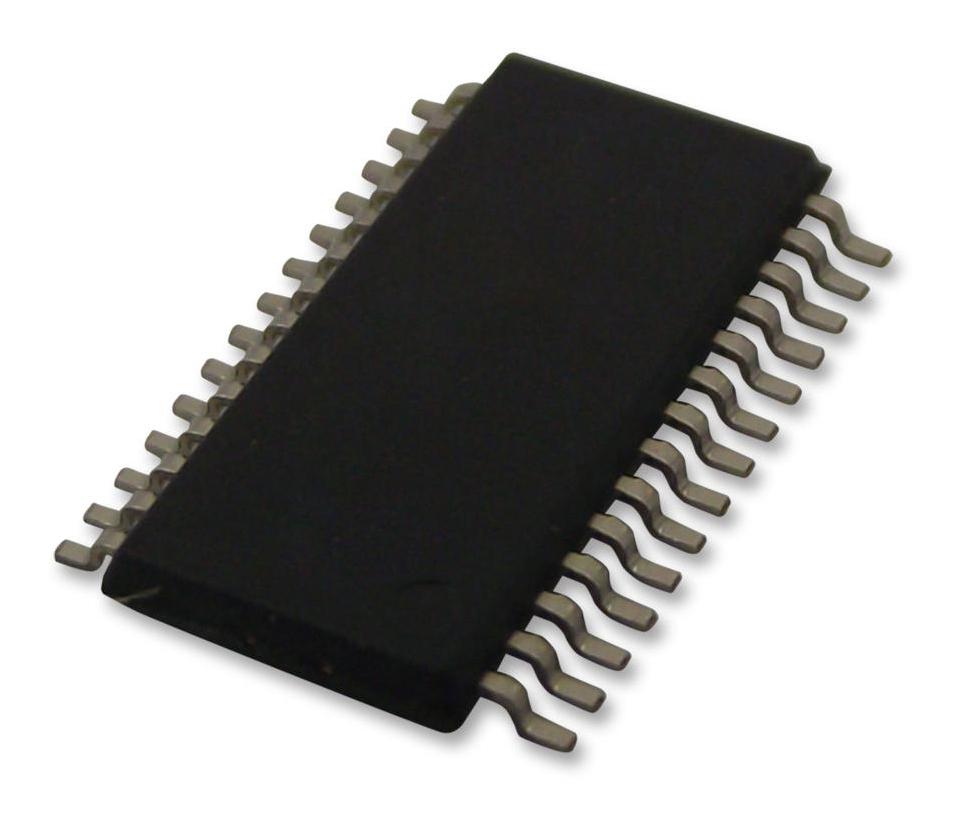

Microchip Technology MGC3030ISS Gesture Controller
The MGC3030 is a sophisticated 3D gesture recognition and motion tracking controller chip utilizing Microchip's patented Gestic technology. It enables contact-free hand gesture detection, position tracking, and advanced user interface integration across various industrial, consumer, and automation markets. Featuring low power consumption, an integrated signal processing unit, adaptive noise suppression, and an easy-to-configure interface, the device supports various power modes, proximity sensing, touch detection, and field calibration. It is ideal for applications like touchless control systems, home automation, gaming, medical devices, and multimedia controls, providing high responsiveness and real-time gesture classification.
Microchip Technology MGC3030ISS Gesture Controller Specifications:
- Recognition of 3D hand gestures and position data
- Proximity and touch sensing
- Detection range: 0 to 10 cm
- Carrier frequency: 44 kHz to 115 kHz
- Five receive channels and one transmit channel
- Position rate: up to 200 positions/sec
- Spatial resolution: up to 150 dpi
- Operating voltage: 3.3V (+/-5%)
- Temperature range: -20°C to +85°C
- Low power modes: processing mode, deep sleep, self wake-up
- Power consumption: 20 mA (processing), 110 pA (self wake-up), 9 pA (deep sleep)
- Interfaces: I2C (slave mode), Gesture port (5 configurable EOis)
- Support for auto calibration, noise reduction, and frequency hopping
- Compatible with low-cost electrode materials like PCB, conductive paint, foil
- Package options: SSOP 28-pin, QFN 28-pin
- Dimensions: SSOP - 7.80x10.50 mm, QFN - 5x5 mm
Buy the Microchip MGC3030 – Reliable 3D Gesture Controller for Industrial Applications
Discover the Microchip MGC3030 gesture recognition controller—an innovative, low-power solution for touchless interfaces. With high accuracy, real-time 3D hand tracking, and versatile connectivity options, it enables seamless integration into industrial, consumer, and automation systems. Its compact package options and robust noise immunity make it ideal for a wide range of applications such as gaming, medical devices, and smart home controls. Upgrade your project effortlessly by ordering online today and experience reliable, contactless interaction with ease and precision.
Order your Microchip MGC3030 gesture recognition controller today and empower your projects with advanced, contactless user interface capabilities.
Frequently Asked Questions
Where can I buy Microchip Technology MGC3030ISS?
You can click on the BUY or RFQ button to purchase MGC3030ISS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MGC3030ISS?
You can download the MGC3030ISS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MGC3030ISS?
Microchip Technology
