Microchip Technology MCP16502TACES8B High-Performance PMIC
The MCP16502 is a high-performance Power Management IC (PMIC) designed for embedded microprocessor units such as SAMA5DX and SAM9X6. It integrates four 1A buck regulators, two auxiliary LDOs, and features configurable output voltages, dynamic voltage scaling, and intelligent power sequencing. Its advanced circuitry supports low noise, high efficiency modes, and fault protections like thermal shutdown and hiccup mode. Suitable for applications in high-performance MPUs, FPGAs, and DSPs, the MCP16502 offers robust power regulation with programmable features, making it ideal for demanding industrial, computing, and embedded systems.
Microchip Technology MCP16502TACES8B High-Performance PMIC Specifications:
- Input Voltage: 2.7V to 5.5V
- Four 1A buck channels with 100% duty cycle support
- Buck switching frequency: 2 MHz, displacement adjustable by +16.5% via I2C
- Two 300 mA LDO regulators with low noise and high efficiency modes
- Output voltages: Buck2 selectable 1.2V, 1.35V, 1.8V; Buck3 default 1.25V; Buck4 default 1.8V
- Package: 32-pin VQFN (5 x 5 mm, with exposed pad)
- Operating Temperature Range: -40°C to +125°C
- Fault protection: Thermal shutdown, hiccup mode, overcurrent, and overtemperature protections
- Interfaces: I2C at 1 MHz for programming and diagnostics
- Power sequences support standard and Hibernate modes with configurable delays
- Dimensions: 5 mm x 5 mm with 3.6 mm exposed pad; lead pitch 0.5 mm
- Compliance: UL 94V-0 flammability, RoHS compliant
- Voltage accuracy: ±1% in critical outputs
- Supports dynamic voltage scaling with programmable ramp rates
- Advanced fault management with programmable response and protections

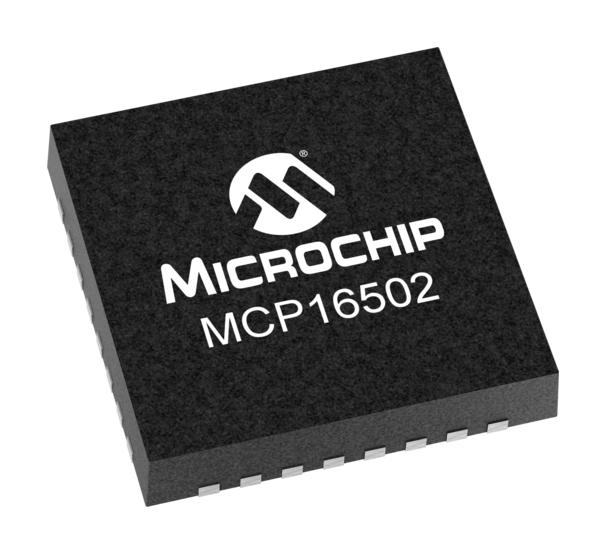

Buy the Buy Microchip MCP16502 High-Performance PMIC Power Regulator Part Number MCP16502TACES8B
Enhance your project with the MCP16502, a robust power management solution featuring four highly efficient buck regulators and two low-noise LDOs. Designed for embedded microprocessor units, it offers configurable output voltages, dynamic voltage scaling, and comprehensive fault protections. Easy to program via I2C at 1 MHz, it supports various operational modes, including Hibernate. Its compact 32-pin VQFN package with a 5x5 mm footprint ensures easy integration into space-constrained designs, providing reliable and optimized power regulation for industrial and high-performance applications.
Order your Microchip MCP16502 high-performance PMIC today and give your embedded systems the dependable power regulation they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology MCP16502TACES8B?
You can click on the BUY or RFQ button to purchase MCP16502TACES8B from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP16502TACES8B?
You can download the MCP16502TACES8B datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP16502TACES8B?
Microchip Technology
