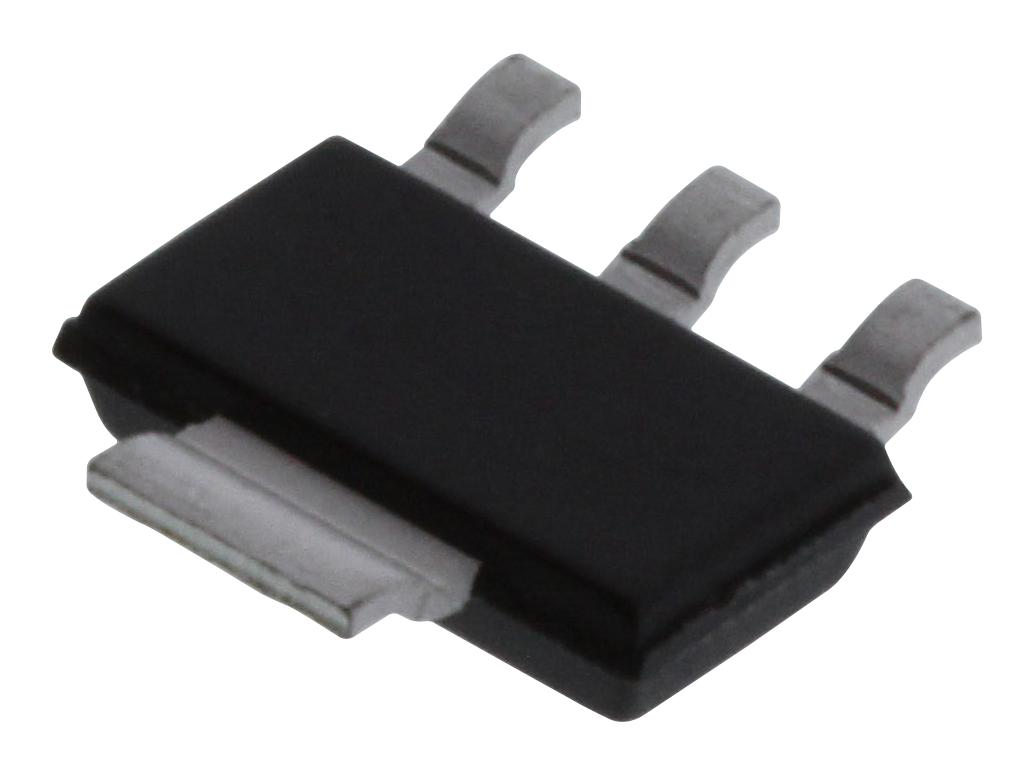

Microchip Technology MCP1755ST5002EDB High-Performance Voltage Regulator
This high-performance Low Dropout (LDO) regulator provides a fixed 5V output with a maximum current of 300mA. It features a low dropout voltage of approximately 300mV at full load and a high Power Supply Rejection Ratio (PSRR) greater than 70dB at 1kHz. The device operates with an input voltage range from 3.6V to 16V and has a typical quiescent current of 68µA. It maintains output voltage within ±2.0% over the entire temperature range and requires only a minimum of 1.0µF output capacitance for stability. Additional features include a power good indicator, shutdown input, true current foldback protection, short-circuit protection, and overtemperature protection.
Microchip Technology MCP1755ST5002EDB High-Performance Voltage Regulator Specifications:
- Input Voltage Range: 3.6V to 16V
- Output Voltage: Fixed 5V
- Maximum Output Current: 300 mA
- Dropout Voltage: 300 mV typical at 300 mA
- Power Supply Rejection Ratio: >70 dB @ 1 kHz
- Quiescent Current: 68 µA typical
- Output Voltage Tolerance: ±2.0% over temperature
- Output Capacitance: Minimum 1.0 µF for stability
- Overtemperature Protection: Yes
- Short-Circuit Protection: Yes
- Power Good Indicator: Yes
- Shutdown Input: Yes
- Foldback Current Protection: Yes
Buy the Microchip MCP1755ST5002EDB – Reliable 5V High-Performance LDO for Industrial Applications
Purchase the Microchip MCP1755ST5002EDB online today to ensure your projects benefit from a highly reliable 5V low dropout regulator. Designed for demanding applications, it delivers up to 300mA of current with low dropout voltage, ensuring efficient power regulation. Its wide input voltage range of 3.6V to 16V makes it suitable for various battery-powered and portable devices. Features include a power good indicator, shutdown control, and multiple protections for safe operation. Order now and optimize your power management with this robust, easy-to-use component.
Buy Microchip MCP1755ST5002EDB now and experience unmatched reliability and performance with low dropout voltage and comprehensive protection features.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1755ST5002EDB?
You can click on the BUY or RFQ button to purchase MCP1755ST5002EDB from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1755ST5002EDB?
You can download the MCP1755ST5002EDB datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1755ST5002EDB?
Microchip Technology
