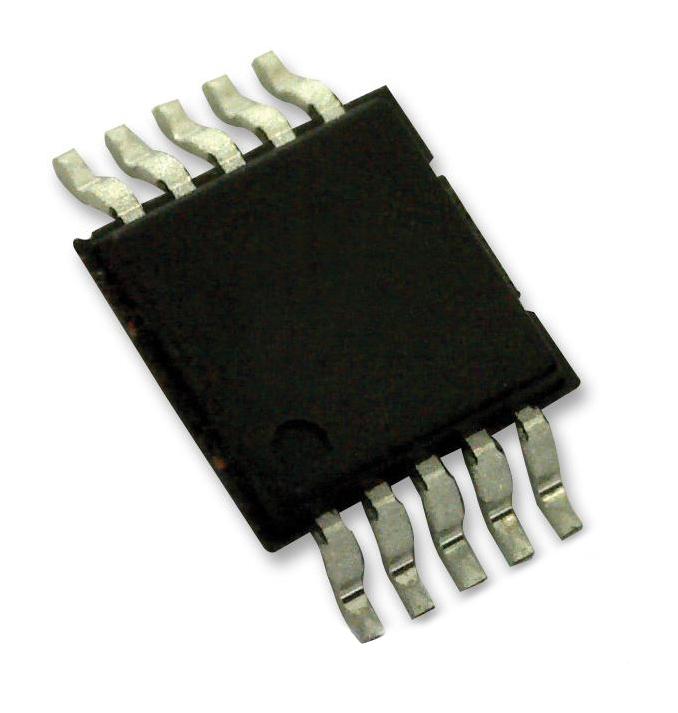

Microchip Technology MCP33141D10EMS 12-bit SAR ADC
The MCP33141D10 is a 12-bit, single-channel, 1Msps SAR ADC featuring low power consumption and high performance. It operates with an external reference voltage up to 5.1V, supporting input full-scale range from -Vper to +Vper. The device uses a 3-wire SPI-compatible interface for data transfer, with automatic self-calibration on power-up. It supports both fully differential and single-ended inputs, with options for high-precision data acquisition in medical, test, and power management applications. The compact MSOP-10 package ensures easy integration, and its extended temperature range makes it suitable for industrial environments.
Microchip Technology MCP33141D10EMS 12-bit SAR ADC Specifications:
- Resolution: 12-bit
- Sample Rate: 1 Msps
- Input Full-Scale Range: from -Vper to +Vper, supported by external reference up to 5.1V
- Interface: SPI-compatible 3-wire
- Power Supply Voltage: 1.8V (analog), 1.7V to 5.5V (digital)
- Power Consumption: approximately 600 μA during conversion at 1 Msps
- Input Capacitance: 10 pF
- Analog Input Range: differential or single-ended configurations supported
- Self-Calibration: automatic on power-up, and manual recalibration available
- Operational Temperature Range: -40°C to +125°C
- Package: MSOP-10 (3 x 3 mm)
Buy the Microchip MCP33141D10 – Reliable 12-Bit SAR ADC for Industrial Applications
Get the high-precision Microchip MCP33141D10 12-bit SAR ADC online today. With its 1Msps sampling rate, low power consumption, and robust SPI interface, it is perfect for industrial, medical, test, and power management systems needing reliable and fast analog-to-digital conversion in a compact package. Improve measurement accuracy and system performance by integrating this proven component into your design. Purchase now for fast delivery and competitive pricing, and enhance your project’s data fidelity and operational stability.
Order your Microchip MCP33141D10 today and give your projects the dependable high-speed data acquisition performance they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology MCP33141D10EMS?
You can click on the BUY or RFQ button to purchase MCP33141D10EMS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP33141D10EMS?
You can download the MCP33141D10EMS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP33141D10EMS?
Microchip Technology
