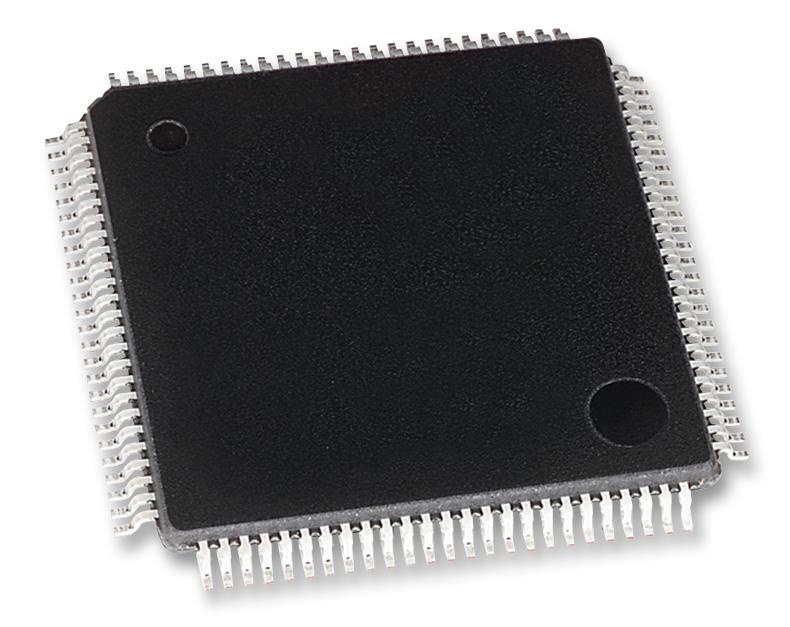

Microchip Technology LAN91C96IMU Ethernet Controller
The LAN91C96i is a high-performance, single-chip Ethernet controller supporting 10BASE-T and AUI interfaces. It features a 6KB packet RAM, full duplex switched Ethernet support, and an internal 16-bit local bus interface. Designed for industrial temperature ranges of -40°C to 85°C, it offers low power CMOS design, serial EEPROM configuration, and compatibility with various bus platforms. Its architecture provides advanced power management, dynamic memory allocation, and extensive register set for network interface, making it ideal for high-speed, reliable industrial networking applications.
Microchip Technology LAN91C96IMU Ethernet Controller Specifications:
- Packet RAM: 6KB
- Supported Standards: IEEE 802.3 Ethernet
- Interface: 10BASE-T, AUI
- Bus Interface: Local Bus, Compatible with 16-bit and 32-bit systems
- Operating Temperature: -40°C to 85°C
- Power Supply: 5V or 3.3V single supply
- Package: 100-pin QFP/TQFP lead-free RoHS compliant
- Crystal Frequency: 20 MHz
- Cycle Time: 185 ns
- Memory Management: Dynamic allocation, 24 packet entries
- Full Duplex: Supported with independent transmit and receive paths
- Power Management: Supports Magic Packet wake-up, low power modes
- Diagnostics: LEDs for link, activity, collision, and status
- Voltage Tolerance: 5V TTL and 3.3V I/O compatibility
Buy the SMSC LAN91C96i – Reliable Ethernet for Industrial Applications
Order the SMSC Lan91C96i Ethernet Controller today online for industrial applications. Featuring 6KB packet RAM, full duplex switched Ethernet support, and low power CMOS design, it ensures reliable and high-speed network connectivity for industrial systems. Its flexible local bus interface supports various system architectures, and it operates across -40°C to 85°C temperature range. Easy to configure via serial EEPROM, it’s suitable for demanding environments needing robust networking solutions. Purchase now for seamless integration into your industrial network setup.
Get SMSC LAN91C96i today—built for industrial-grade high-speed Ethernet and robust network performance in demanding environments.
Frequently Asked Questions
Where can I buy Microchip Technology LAN91C96IMU?
You can click on the BUY or RFQ button to purchase LAN91C96IMU from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part LAN91C96IMU?
You can download the LAN91C96IMU datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of LAN91C96IMU?
Microchip Technology
