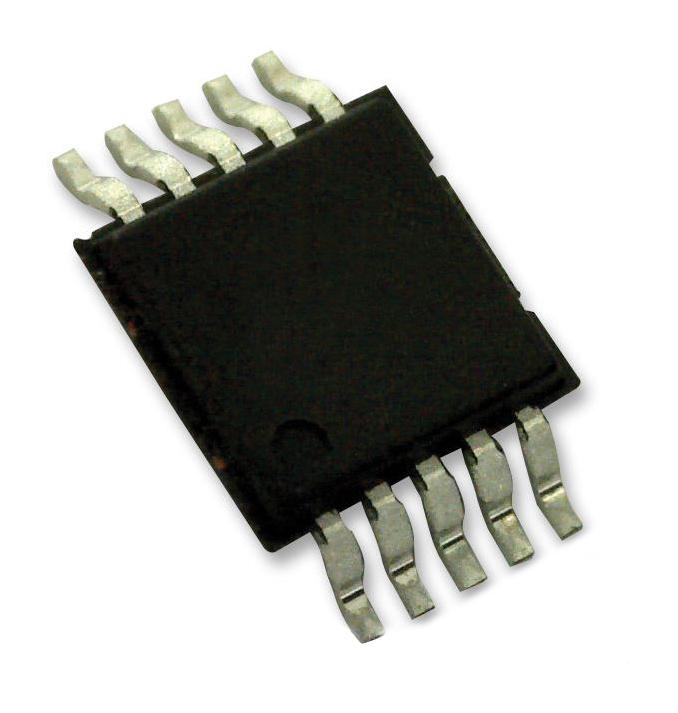

Microchip Technology MCP3315105EMS High-Speed SAR ADC
The MCP33151/41-10 and MCP33151/41-05 are high-performance, low-power single-ended SAR ADCs with 14-bit and 12-bit resolutions, respectively, capable of 1 Msps and 500 ksps sample rates. They operate over a wide voltage range with external references up to 5.1V, making them ideal for industrial, automotive, and medical applications. Features include auto calibration, no output latency, and an SPI-compatible interface. They support high throughput, low power consumption, and are qualified for automotive temperature grades from -40°C to +125°C.
Microchip Technology MCP3315105EMS High-Speed SAR ADC Specifications:
- Resolution: 14-bit (MCP33151-10), 12-bit (MCP33141-10 and -05)
- Sample Rate: 1 Msps (MCP33151-10), 500 ksps (MCP33151-05 and MCP33141-XX)
- Input Type: Single-Ended, pseudodifferential capable with ground-referenced inputs
- Input Range: OV to Vref (up to 5.1V)
- Supply Voltage: AVpp 1.7V to 1.9V, DVio 1.7V to 5.5V
- Reference Voltage: External, up to 5.1V
- Power Consumption: Typical during conversion 0.66 mA (MCP33151-10), 0.33 mA (MCP33151-05)
- Interface: SPI-compatible, data clock up to 100 MHz
- Auto calibration on power-up and on demand
- Temperature Range: -40°C to +125°C
- Package Options: MSOP-10, TDFN-10
- Auto calibration takes approx. 40 ms at power-up
- ADC no output latency, high ENOB achievable with internal averaging
Buy the Microchip MCP33151-10 – Reliable High-Speed SAR ADC for Industrial Applications
Purchase the Microchip MCP33151-10 today for high-speed, 14-bit resolution data acquisition with auto calibration and no latency, suitable for industrial, automotive, and medical applications. This reliable, low-power SAR ADC offers up to 1 Msps throughput, external reference support up to 5.1V, and SPI interface compatibility, making it ideal for precise, real-time measurements in demanding environments. Shop online now for fast delivery and integrate industry-leading analog-to-digital conversion into your high-performance systems.
Order your Microchip MCP33151-10 high-precision ADC today and optimize your industrial and automotive projects with dependable, automatic calibration.
