Microchip Technology MCP8063EMD Brushless Motor Driver
The MCP8063-E/MD is a highly integrated 3-phase full-wave sensorless driver designed for brushless motors. It provides 180° sinusoidal drive with high torque output and quiet operation. The device features a wide power supply range and integrated functionalities, eliminating the need for external tuning. Speed control can be implemented via power supply modulation or pulse-width modulation (PWM). It includes a built-in frequency generator for precise speed regulation in closed-loop systems. Additional features include lock-up protection that disables output current during motor lock conditions with automatic restart, overcurrent limitation, and thermal shutdown protection, enhancing system reliability. Optimized for fan applications requiring high efficiency and low noise, the driver is suitable for computer peripherals, HVAC systems, and motor drive controls.
Microchip Technology MCP8063EMD Brushless Motor Driver Specifications:
- Power Supply Voltage: 2V to 14V
- Maximum Output Current: 1.5A
- Frequency Generator Output: 23 kHz PWM frequency
- Thermal Shutdown: 170°C with 25°C hysteresis
- Overvoltage Protection: 18.5V
- Operating Temperature Range: -40°C to +125°C
- Package: 8-Lead DFN 4x4 mm with exposed pad
- Output Voltage: fully sinusoidal 180° drive
- Lock-Up Protection: Yes, with automatic restart
- Built-in overcurrent and overvoltage protections
- Control Inputs: PWM and power supply modulation
- Wide input voltage range and optimized for fan cooling systems

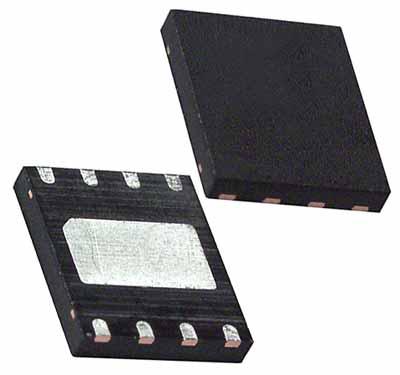

Buy the Buy Microchip MCP8063 Part Number MCP8063EMD Online
Enhance your motor control system with the Microchip MCP8063 brushless driver, enabling high torque, silent operation, and precise speed regulation. Its integrated features eliminate external tuning and simplify design, ideal for fans, HVAC, and industrial applications. The device offers a wide power supply range, lock-up protection, overcurrent, and thermal shutdown to ensure system reliability. With a compact 8-pin DFN package, it is suitable for space-constrained environments. Purchase the MCP8063 online now to upgrade your motor control solutions easily and effectively.
Get Microchip MCP8063 today—built for high efficiency, low noise, and reliable fan motor control applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP8063EMD?
You can click on the BUY or RFQ button to purchase MCP8063EMD from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP8063EMD?
You can download the MCP8063EMD datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP8063EMD?
Microchip Technology
