Microchip Technology MCP3461EST Precision Quad-Channel ADC
The MCP3461 is a high-accuracy, quad-channel, 16-bit delta-sigma ADC suitable for precision measurement applications such as sensors, transducers, and industrial automation. It features programmable data rates up to 153.6 ksps, wide input voltage range, internal temperature sensor, and security features like CRC and register locking. The device includes an internal oscillator, configurable gain, offset calibration, and various power management modes including low-power shutdown options. Its SPI interface supports full communication control, secure data transfer, and flexible configuration suitable for demanding environments and real-time measurements.
Microchip Technology MCP3461EST Precision Quad-Channel ADC Specifications:
- Resolution: 16-bit
- Channels: 4
- Input Voltage Range: AVpp to AVpp + 0.1V (differential or single-ended)
- Input Impedance: 510 kΩ (GAIN=0.33x), 260 kΩ (GAIN=1x), decreasing with gain
- Sampling Frequency: Up to 153.6 ksps based on OSR and MCLK
- Data Format: selectable 16 or 32-bit modes with optional channel ID and overrange
- Power Supply: AVpp 2.7V to 3.6V, DVpp 1.8V to 3.6V
- Power Consumption: ≤ 1 μA in full shutdown, ~0.83 μA at 105°C in full shutdown
- Operating Temperature Range: -40°C to +125°C
- Package: 20-Lead UQFN (3x3mm), 20-Lead TSSOP (6.4x6.4mm)
- Features: Internal temperature sensor, CRC security, register locks, configurable gain and power modes, digital offset/gain calibration
- Interface: 20 MHz SPI compatible, supports Mode 0,0 and 1,1
- Built-in Burnout Current Sources for open/short detection, internal oscillator, and multiple power modes for low-power operation.

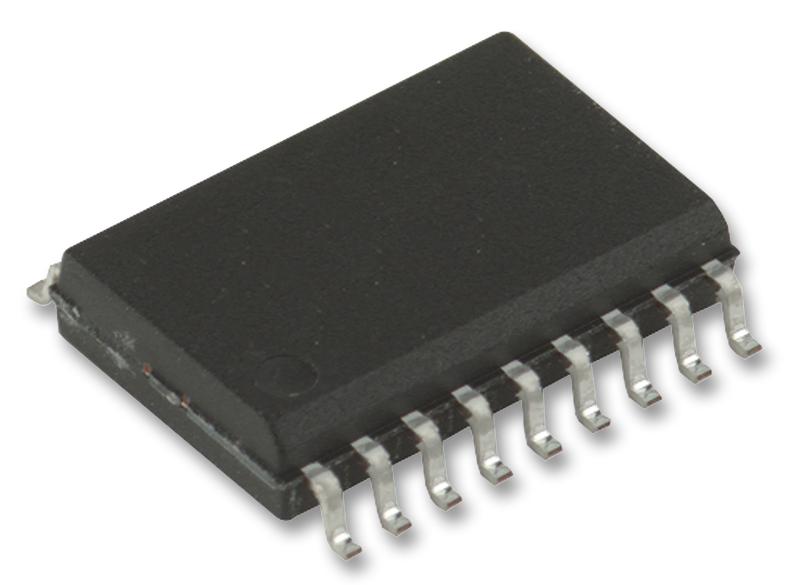

Buy the Buy Microchip MCP3461/2/4 Part Number MCP3461EST Online
Get your Microchip MCP3461 high-precision 16-bit quad-channel delta-sigma ADC online now. With programmable data rates up to 153.6 ksps, integrated temperature sensor, security features like CRC and register locking, and low power shutdown modes, this ADC is perfect for industrial automation, sensor transducers, and portable instrumentation. Its versatile SPI interface supports secure data transfer and flexible configuration, ensuring reliable performance in demanding environments. Purchase today for fast delivery and start integrating advanced measurement capabilities into your systems.
Order your Microchip MCP3461 quad-channel ADC today and enhance your precision measurement applications with high accuracy and security features.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3461EST?
You can click on the BUY or RFQ button to purchase MCP3461EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3461EST?
You can download the MCP3461EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3461EST?
Microchip Technology
