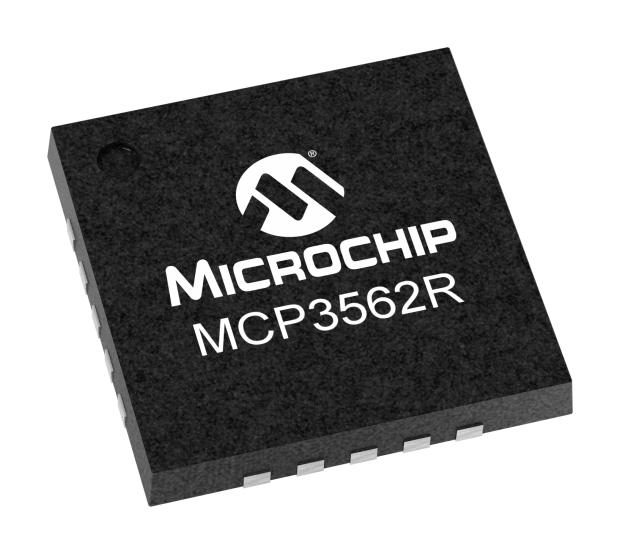

Microchip Technology MCP3562RTENC Dual-channel Precision ADC
The MCP3562RTENC is a high-precision, 24-bit delta-sigma ADC with dual input channels, internal voltage reference, and flexible SPI interface. It provides configurable oversampling ratios, fast startup, and advanced security features such as CRC checks and register lock. Suitable for precision measurement applications including sensor transducers, industrial automation, and temperature monitoring, it offers excellent noise performance, low power consumption, and extended temperature range, ensuring reliable operation across diverse environments.
Microchip Technology MCP3562RTENC Dual-channel Precision ADC Specifications:
- Resolution: 24-bit
- Channels: 2 (differential or single-ended)
- Input Voltage Range: 0.6V to AVpp
- Reference Voltage: Internal 2.4V or external REFIN- pin
- Oversampling Ratio (OSR): 32 to 98,304
- Data Rate: Up to 153.6 ksps
- Power Supply Voltage: 2.7V to 3.6V (AVpp), 1.8V to 3.6V (DVpp)
- Analog Power Consumption: 0.56 to 2.2 mA (depending on boost/gain settings)
- Analog Power Supply: AVpp=2.7V–3.6V, REFIN- connected to ground for single-ended
- Input Impedance: ~150 kΩ at gain 1x, varies with gain
- Full Scale Range: 2 x Vper / gain
- Temperature Range: -40°C to +125°C
- Package Options: 20-lead UQFN, 20-lead TSSOP
- Security Features: CRC-16 checksum, register lock, system diagnostics
- Internal Temperature Sensor: Yes
- Burnout Current Sources for Open/Short Detection: Yes
Buy the Microchip MCP3562RTENC – Reliable Dual-Channel 24-bit ADC for Industrial Applications
Order the Microchip MCP3562RTENC today to ensure accurate, low-noise data acquisition for industrial automation, sensor transducers, and temperature measurement solutions. Featuring high resolution, configurable oversampling, multi-channel operation, internal voltage reference, and advanced security features, it provides reliable performance across a broad temperature range and low power consumption, making it an ideal choice for demanding applications requiring precision and robustness. Purchase online now to integrate this versatile ADC into your system seamlessly for optimal results.
Get Microchip MCP3562RTENC today—designed for high-precision measurements and long-lasting performance in industrial environments.
