Microchip Technology MCP48FEB28EMQ Voltage Output DAC
The MCP48FEB28 is a 12-bit octal-channel voltage output DAC featuring SPI interface, nonvolatile EEPROM memory, rail-to-rail output buffer with adjustable gain, and power-down modes. It supports external and internal voltage references, including buffered/unbuffered options, and internal band gap voltage. Its low power consumption and high accuracy make it suitable for precision control, calibration, and measurement applications. The device includes WiperLock technology for security, and its compact 5x5 mm VQFN package ensures easy integration into space-constrained designs, with extended temperature range for industrial environments.
Microchip Technology MCP48FEB28EMQ Voltage Output DAC Specifications:
- Resolution: 12-bit (4096 steps)
- Number of channels: 8 (octal) with buffer
- Supply Voltage: 2.7V to 5.5V (full), 1.8V to 5.5V (reduced specs)
- Voltage Reference Options: device Vpp, external Veer (buffered/unbuffered), internal band gap (1.22V typical)
- Output Voltage Range: Vgg to Vpp, Vgg to G * Vpp / G in gain modes
- Gain: Programmable 1x or 2x, with internal/external reference control
- Power-Down Modes: High impedance, resistor loadings, with current sinking ranges
- EEPROM Memory: Nonvolatile, retains DAC value and config, 1 million cycle endurance
- Interface: SPI mode 0,1, support up to 20 MHz write, 10 MHz read
- Temperature Range: -40°C to +125°C extended
- Package: 20-pin VQFN (5x5 mm), optional TSSOP (4.4 mm body)
- Power Consumption: Typical 1.0–3.8 μA in power-down, up to 27 mA active

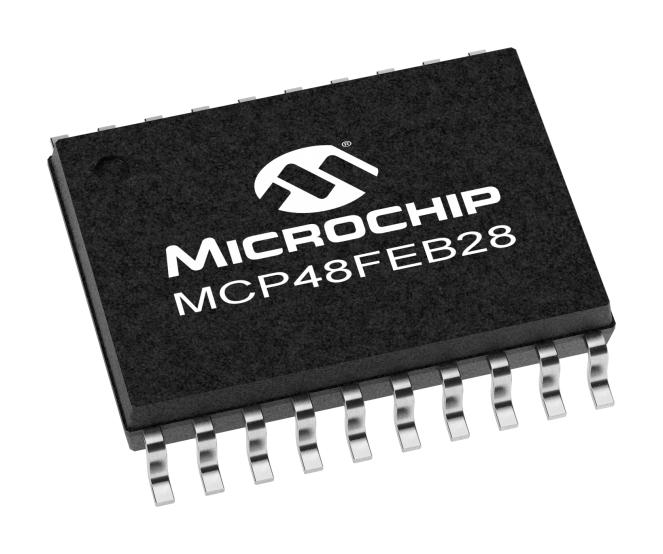

Buy the Microchip Series MCP48FXB Full-Scale DAC: MCP48FEB28
Order the Microchip MCP48FEB28 today online to ensure reliable, high-resolution 12-bit octal DAC with EEPROM memory, secure WiperLock, and versatile voltage references, perfect for calibration, control, and measurement tasks across industrial temperature ranges. Easy to integrate in space-constrained designs with the 20-pin VQFN package. Fast SPI interface supports up to 20 MHz write speed, with low power consumption for portable devices. Optimize your systems now with genuine Microchip quality and performance.
Buy Microchip MCP48FEB28 now and experience unmatched accuracy, security with WiperLock, and flexible voltage references for your precision applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FEB28EMQ?
You can click on the BUY or RFQ button to purchase MCP48FEB28EMQ from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FEB28EMQ?
You can download the MCP48FEB28EMQ datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FEB28EMQ?
Microchip Technology
