Microchip Technology 62EM100001 Electrical Driver

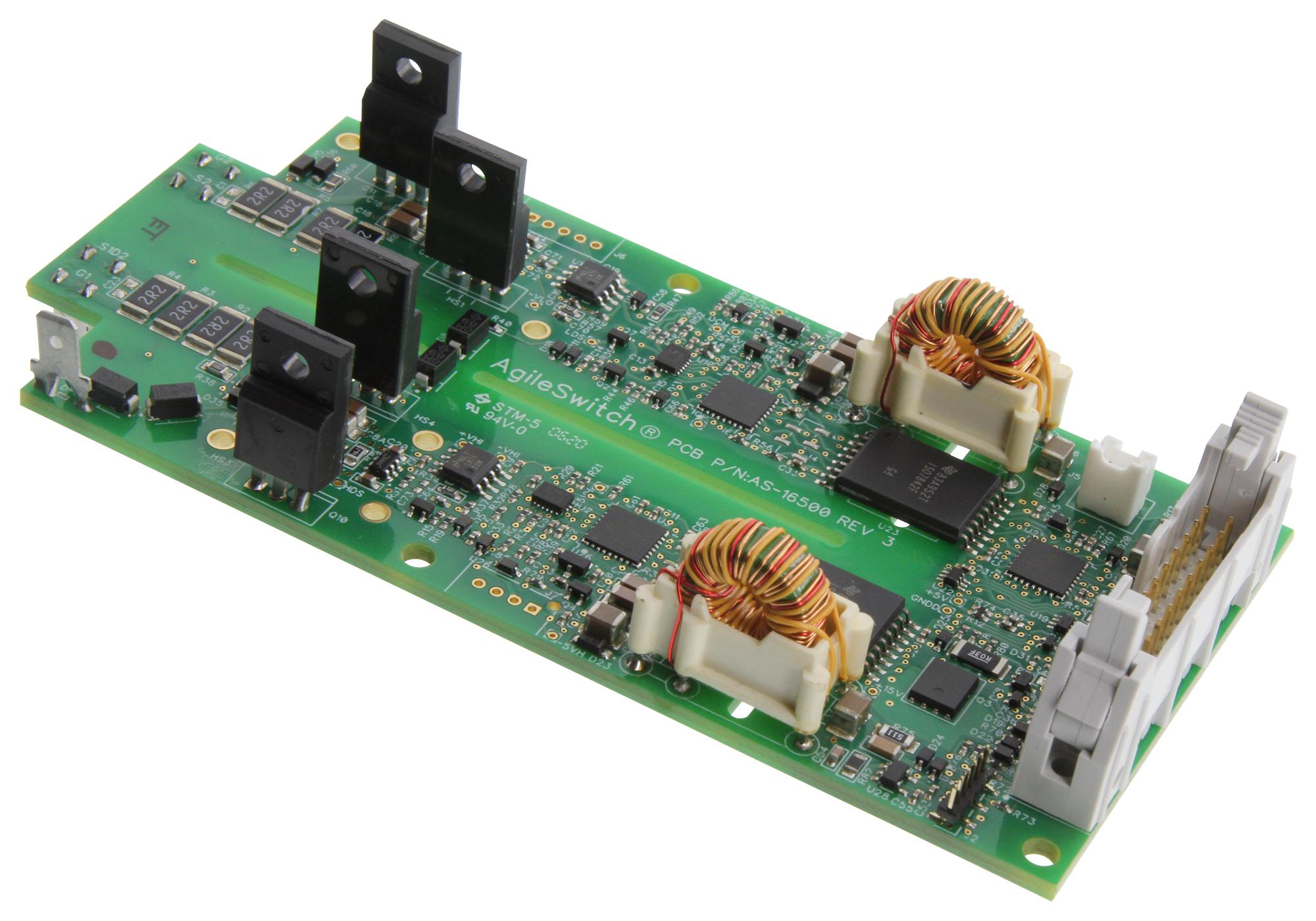

The AgileSwitch 62EM1 is a programmable 62mm electrical driver optimized for Silicon Carbide MOSFET modules. It offers monitoring and fault reporting, supporting up to 20 Amps peak current at 200 kHz frequency. Features include isolated high/low DC/DC converters, configurable gate voltages, and software programmable settings such as dead time, fault lockout, and desaturation detection. Designed for high-speed trains, motor drives, EV/HEV, solar inverters, wind turbines, and UPS systems, it ensures safe operation with automotive-grade components and comprehensive fault monitoring for reliable power control.
Microchip Technology 62EM100001 Electrical Driver Specifications:
- Supply Voltage: 14-16 V, typical 15 V
- Peak Gate Current: ±20 A
- Switching Frequency: Up to 200 kHz
- Isolation Voltage: 4500 V RMS (primary to secondary)
- Working Voltage: 1200 V and 1700 V
- Ripple/Voltage Monitor PWM Frequency: 31.5 kHz
- Output Power per Gate: 10 W
- Temperature Range: -40°C to +85°C (operating), -40°C to +90°C (storage)
- DC Link Voltage Monitor Accuracy: ±1% from 25V to 975V (1200V model), 50V to 1650V (1700V model)
- Creepage Distance: 12 mm
- Isolation: Primary to secondary at 4500 V RMS
- Input Logic: Single-ended or differential (RS-422 compatible)
- Control Interface: 20 pin connector, RF, GND, fault lines, temperature monitoring
- Dimensions: 100mm x 49mm x 15mm (approximate)
Buy the AgileSwitch 62EM1 – Reliable Electrical Driver for Industrial Applications
Purchase the AgileSwitch 62EM1 online today and benefit from a high-performance programmable driver designed for SiC MOSFET modules. With fault monitoring, configurable features, and high current capacity, it offers dependable operation in demanding industrial environments. Its isolated voltage monitoring and comprehensive fault reporting ensure system safety and efficiency. Ideal for traction, motor drives, EVs, solar inverters, and wind turbines, this driver guarantees robust power control and flexible configuration to meet your industrial power needs efficiently.
Buy AgileSwitch 62EM1 now and experience unmatched reliability, versatile fault reporting, and precise control suitable for high-power industrial systems.
Frequently Asked Questions
Where can I buy Microchip Technology 62EM100001?
You can click on the BUY or RFQ button to purchase 62EM100001 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part 62EM100001?
You can download the 62EM100001 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of 62EM100001?
Microchip Technology
