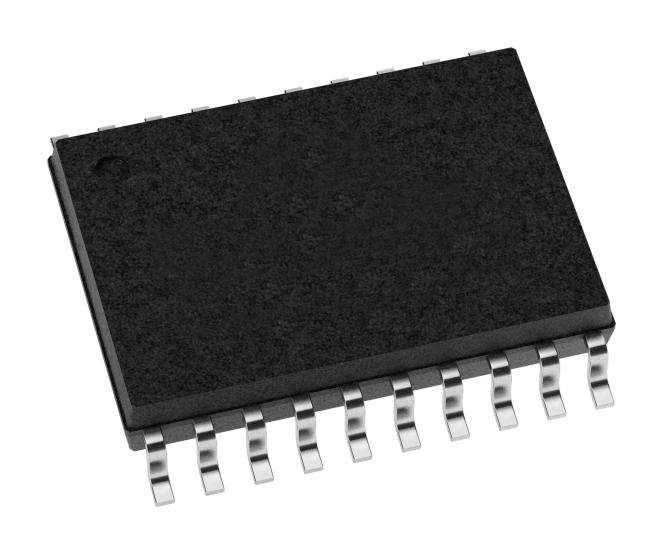

Microchip Technology MCP48FVB0420EST High-Resolution DAC
The MCP48FVB0420EST is a high-resolution quad-channel voltage output DAC with 8-bit resolution, supporting SPI communication for precise control. It features nonvolatile EEPROM memory to retain settings across power cycles, an internal mode for internal band gap reference, and versatile output buffering with gain options of 1x or 2x. The device operates over a wide voltage range from 2.7V to 5.5V with low power consumption, making it ideal for precise, low-power applications such as instrumentation and control systems. Its robust design supports extended temperature ranges up to 125°C, ensuring reliable operation in harsh environments.
Microchip Technology MCP48FVB0420EST High-Resolution DAC Specifications:
- Resolution: 8-bit
- Channels: 4 (Quad output)
- Operating Voltage Range: 2.7V to 5.5V
- Power Consumption: <2.6 mA during normal operation
- Memory: 64-byte EEPROM for settings storage
- Output Buffer Gain: 1x or 2x configurable via software
- Voltage Reference: Internal band gap, external reference optional
- Temperature Range: -40°C to +125°C (extended)
- SPI Interface: Supports Mode 0,0 and 1,1, up to 20 MHz write, 10 MHz read
- Package Types: VQFN 20-pin, TSSOP 20-pin
- Includes power-on reset, brown-out detection, and WiperLock security features
- Designed for precision voltage control in industrial and instrumentation applications
Buy the Microchip Series MCP48FXB4 DAC: 8-bit Quad-Channel Voltage Output, MCP48FVB0420EST
Order the Microchip MCP48FVB0420EST online today to enhance your control system with a precise, low-power quad-channel DAC featuring nonvolatile memory. Its 8-bit resolution, support for both buffered and unbuffered voltage references, and wide voltage operation ensure flexible integration into instrumentation, automation, and industrial applications. The device’s SPI interface supports high-speed communication, and its robust design guarantees reliable performance across extended temperature ranges. Buy online now to benefit from fast delivery, excellent support, and proven quality for your critical control projects.
Get Microchip MCP48FVB0420EST today—built for high-precision, low-power voltage output with reliable EEPROM memory and wide operating voltage range.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FVB0420EST?
You can click on the BUY or RFQ button to purchase MCP48FVB0420EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FVB0420EST?
You can download the MCP48FVB0420EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FVB0420EST?
Microchip Technology
