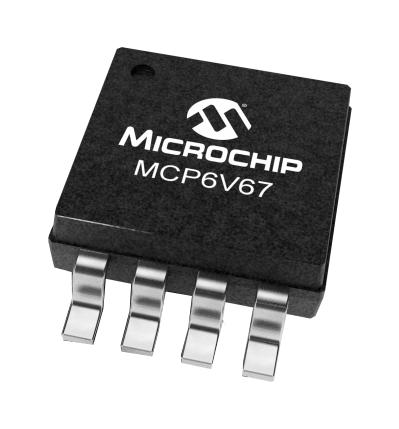

Microchip Technology MCP6V67EMS Dual Zero-Drift Op Amp
The MCP6V67 is a dual zero-drift operational amplifier designed for high precision applications. It features rail-to-rail input/output, low noise, and low power consumption, making it ideal for sensor conditioning, portable instrumentation, and temperature measurement. Its extended temperature range supports operation from -40°C to +125°C. The device provides excellent offset stability, high PSRR and CMRR, and is offered in compact packages such as MSOP-8, TDFN, and TSSOP. With internal chopping circuitry, it significantly reduces offset drift and enhances accuracy over temperature.
Microchip Technology MCP6V67EMS Dual Zero-Drift Op Amp Specifications:
- Package Types: MSOP-8, TDFN, TSSOP
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage Range: 1.8V to 5.5V
- Input Offset Voltage: ±25 µV (max)
- Input Bias Current: ±50 pA (max)
- Input Voltage Range: VSS to VPP, with headroom of 0.2V below VSS and 0.3V below VPP
- Gain Bandwidth Product: 1 MHz (typical)
- Slew Rate: 0.45 V/µs (typical)
- Power Supply Rejection Ratio: 110 dB (min)
- Common Mode Rejection Ratio: 111 dB (min)
- Input Noise Voltage Density: 26 nV/√Hz (f<2kHz)
- EMI Rejection Ratio at 1.8 GHz: 101 dB
- Output Voltage Swing (VPP=5.5V): VSS+4.7 mV to VPP-5.9 mV
- Quiescent Current: 80 pA per amplifier (typical)
- Internal chopping circuitry with low offset drift
- Designed for medical, industrial, and sensor applications
Buy the Microchip Series Dual Zero-Drift Op Amp: MCP6V67
Purchase the Microchip Series MCP6V67 dual zero-drift operational amplifier online today. With features like rail-to-rail input/output, ultra-low offset, low noise, and extended temperature operation, this device ensures high accuracy in sensor conditioning, medical instrumentation, and portable applications. Its compact MSOP, TDFN, and TSSOP packages allow easy integration into space-constrained designs. Benefit from low power consumption of only 80 pA per amplifier and excellent EMI immunity, making it the ideal choice for reliable, high-precision analog solutions in diverse industries.
Order your Microchip Series MCP6V67 dual zero-drift op amp today and give your sensor and medical projects the dependable high-precision performance they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6V67EMS?
You can click on the BUY or RFQ button to purchase MCP6V67EMS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6V67EMS?
You can download the MCP6V67EMS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6V67EMS?
Microchip Technology
