Microchip Technology MCP48FVB04EMQ Quad-channel DAC
The MCP48FVB04 is a quad-channel voltage output digital-to-analog converter (DAC) with 8-bit resolution, supporting SPI interface operation and nonvolatile EEPROM memory. Designed for precision voltage control applications, it features a resistor ladder architecture driven by configurable reference sources including internal band gap, external reference, or Vpp. The output buffer provides rail-to-rail voltage with programmable gain (1x or 2x), low noise, and low offset. Suitable for sensor calibration, set-point trimming, low-power instrumentation, and motor control, ensuring stable operation from 2.7V to 5.5V.
Microchip Technology MCP48FVB04EMQ Quad-channel DAC Specifications:
- Resolution: 8-bit
- Number of channels: 4 (Quad) or 8 (Octal)
- Operating Voltage Range: 2.7V to 5.5V
- Output Range: Vgg to Vpp or gain-adjusted voltage based on configuration
- Reference Sources: Internal band gap, external reference, device Vpp
- Output Buffer: Rail-to-rail, low noise, low offset
- Gain Configuration: 1x or 2x programmable via device register
- Memory: Nonvolatile EEPROM with auto-recall of settings
- Interface: SPI compatible, Up to 20 MHz write, 10 MHz read
- Package Types: 20-Lead VQFN (5x5mm), TSSOP (20-pin)
- Temperature Range: -40°C to +125°C
- Power consumption: <2.6 mA (normal), 680 nA (power-down)
- Additional features: WiperLock technology for register protection
- Application areas include sensor calibration, set point trimming, low-power instrumentation, motor control

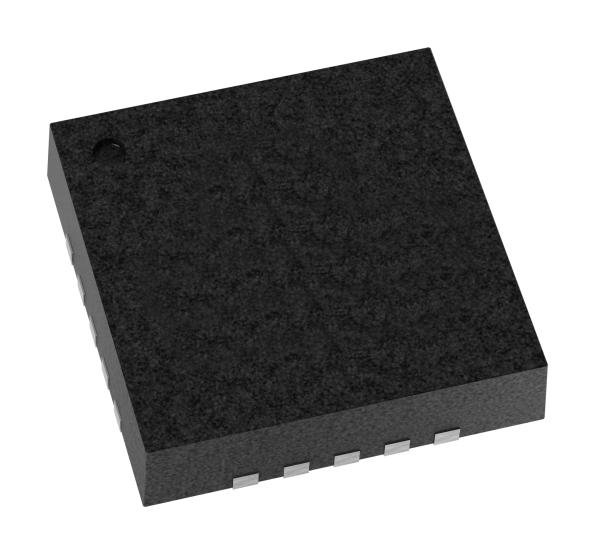

Buy the Buy Microchip MCP48FVB04 Part Number MCP48FVB04EMQ Online
Purchase the Microchip MCP48FVB04 quad-channel voltage DAC online for high-precision, low-noise analog voltage output with nonvolatile memory and SPI interface. Its 8-bit resolution, configurable gain, and rail-to-rail output make it ideal for sensor calibration, set-point trimming, and low-power instrumentation. The device supports multiple reference sources including internal band gap or external reference, ensuring flexible operation from 2.7V to 5.5V. Compact in 20-pin VQFN or TSSOP packages, it is suitable for space-constrained applications requiring reliable, stable voltage control with programmable settings.
Get Microchip MCP48FVB04 today—built for precision voltage output, low power usage, and reliable SPI communication in compact packages.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FVB04EMQ?
You can click on the BUY or RFQ button to purchase MCP48FVB04EMQ from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FVB04EMQ?
You can download the MCP48FVB04EMQ datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FVB04EMQ?
Microchip Technology
