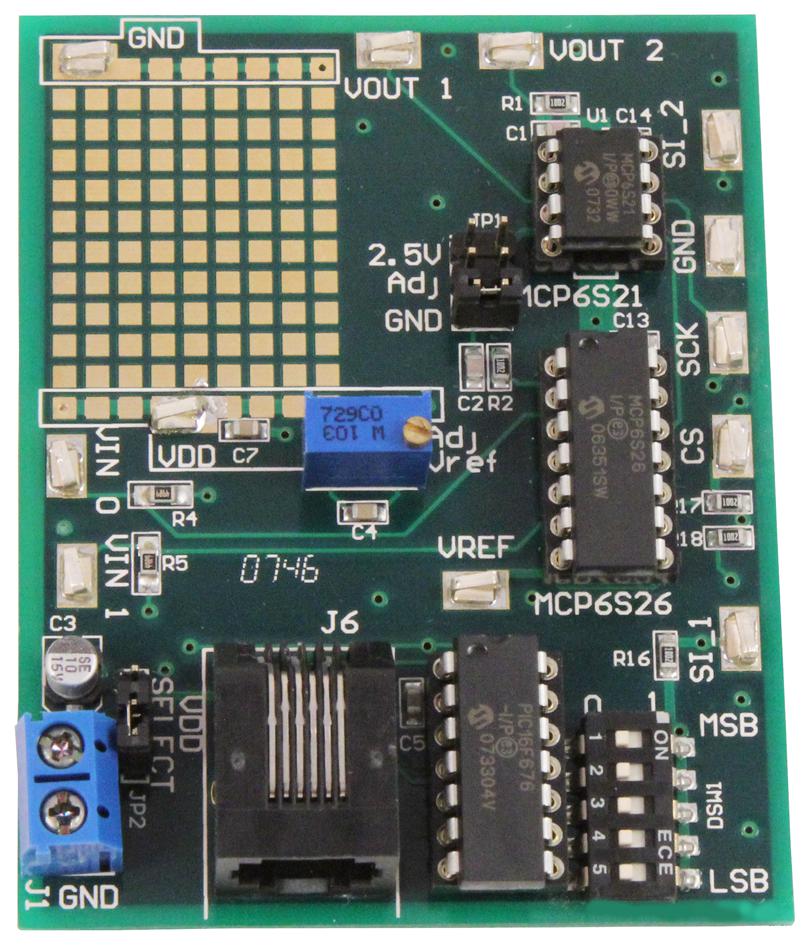

Microchip Technology MCP6S2XEV Programmable Gain Amplifier Board
The MCP6S2X Evaluation Board features MCP6S21 and MCP6S26 Programmable Gain Amplifiers, supporting digital channel selection and programmable gains from 1 to 32 V/V. Cascading PGAs offers a maximum overall gain of 1024 V/V. The board includes adjustable reference voltages (0V, 2.5V, 5V), a PIC16F676 microcontroller for program control, and connectors for external signals. It supports prototyping and custom configurations, ideal for test measurement, sensing, industrial, and instrumentation applications. Reprogrammable via ICSP, with daisy-chaining capability for multiple PGAs.
Microchip Technology MCP6S2XEV Programmable Gain Amplifier Board Specifications:
- Supports MCP6S21 single-channel and MCP6S26 six-channel PGAs
- Gain range: 1, 2, 4, 5, 8, 10, 16, 32 V/V
- Cascade configuration achieves total gain up to 1024 V/V
- Reference voltages: 0V, 2.5V, 5V (buffered and adjustable)
- Allows input coupling via SMA connectors and test points
- Power supply: 2.7V to 5.5V
- Includes PIC16F676 microcontroller for programmable control
- Supports SPI™ interface for programming PGAs
- Daisy-chain capability for multiple PGAs
- Includes prototype area for custom circuitry
- Application areas include sensing, measurement, medical, industrial systems
Buy the Microchip Series Evaluation Board: MCP6S2X - MCP6S21/26
Discover the MCP6S2X evaluation board, engineered for precision signal amplification with programmable gains from 1 to 1024 V/V. Featuring MCP6S21 and MCP6S26 PGAs, it supports digital channel selection, cascading configurations, and adjustable reference voltages. Ideal for sensing, measurement, and instrumentation applications, the board offers easy programmability via SPI interface and reprogrammable microcontroller. Its prototyping area enables custom circuit integration, making it the perfect choice for engineers and developers seeking robust and flexible testing solutions.
Get Microchip MCP6S2X evaluation board—perfect for sensing, measurement, and industrial systems—built for precision and long-lasting durability.
