Microchip Technology MCP4XXXDMDB digital potentiometer

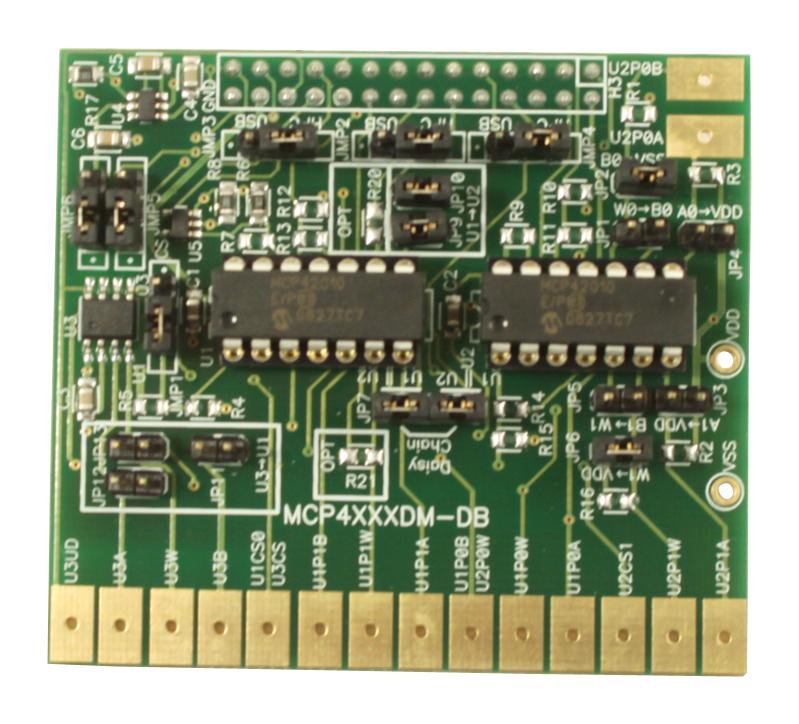

The MCP4XXXDM-DB is a digital potentiometer daughter board designed to facilitate quick evaluation of MCP42XXX and MCP402X series digital potentiometers. It features dual digital potentiometers with characteristics similar to their single counterparts, along with non-volatile MCP402X devices. The board supports stacking resistor networks to create programmable windowed digital potentiometers and includes one MCP42010 (10kΩ) rheostat, another MCP42010 (10kΩ) potentiometer, and a separate standalone potentiometer. Additionally, it incorporates a TC1240A voltage doubler to generate higher voltage levels for WiperLock technology testing. The interface includes headers compatible with PICDEM boards, jumpers for configuring terminal connections, and pads for signal connections, making it suitable for applications in sensing, instrumentation, and power management.
Microchip Technology MCP4XXXDMDB digital potentiometer Specifications:
- Supports MCP42XXX and MCP402X series digital potentiometers
- Includes two MCP42010 (10kΩ) rheostat/potentiometer devices
- Supports stacking resistor networks for programmable windowed configurations
- Includes a MCP4021-103 (10kΩ) for evaluation, replaceable with MCP4011
- Features a TC1240A voltage doubler for WiperLock technology testing
- Compatible with PICDEM™ demo boards via 28-pin header
- Jumpers for terminal connection configuration and signal routing
- Pads for Signal and resistor network connections
- Board dimensions: approximately 2.25
