Microchip Technology MCP6022IP Low-Noise Operational Amplifier
The MCP6022-I/P is a low-noise, rail-to-rail operational amplifier with a 10 MHz gain bandwidth and a low operating current of 1.0 mA. It offers low offset voltage below 0.5 mV, high open-loop gain, and is fabricated on advanced CMOS technology for high-speed, low distortion performance. Suitable for single supply operation from 2.5V, this op amp is stable at unity gain, with low THD of approximately 0.00053% at 1V/V gain. Its design features include rail-to-rail input/output, minimal noise, and low bias current, ideal for precision industrial and extended temperature applications.
Microchip Technology MCP6022IP Low-Noise Operational Amplifier Specifications:
- Gain Bandwidth Product: 10 MHz
- Supply Voltage Range: 2.5V to 5.5V
- Quiescent Current: 1.0 mA (typical)
- Input Offset Voltage: Less than 0.5 mV
- Total Harmonic Distortion: ~0.00053% at G=1V/V
- Input Noise Voltage: 8.7 nV/√Hz at 10 kHz
- Output Voltage Swing: within 20mV of rails at 10 kΩ load
- Input Bias Current: 1 pA (typical)
- Temperature Range: Industrial (-40°C to +85°C), Extended (-40°C to +125°C)
- Package Types Available: PDIP, SOIC, TSSOP, MSOP, SOT-23
- Designed for high-speed precision, low distortion applications
- Rail-to-rail input/output for maximum headroom and dynamic range
- Low noise levels suitable for sensitive audio and medical equipment
- Intended for automotive, instrumentation, and sensor signal conditioning
- Compatible with SPICE macro models and evaluation boards
- Robust ESD protection and bias current management
- Optimized for analog filtering, DAC buffering, and active circuits

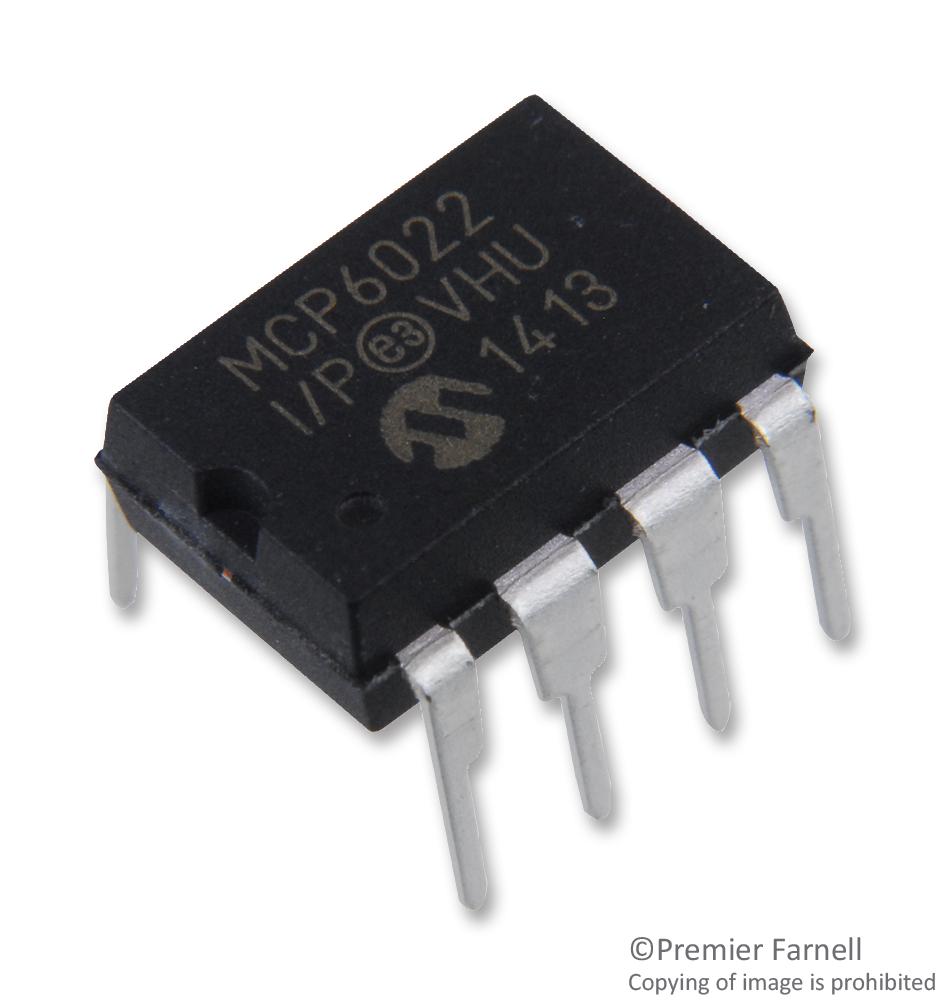

Buy the Microchip Series MCP6022 Low-Noise Operational Amplifier: MCP6022IP
Order the Microchip MCP6022IP online today to enhance your high-speed analog designs. This low-noise, rail-to-rail op amp delivers superior precision with a bandwidth of 10 MHz and ultra-low distortion, ideal for sensor, audio, and medical applications. Its advanced CMOS technology ensures high performance at low power, operating from just 2.5V. Easy to integrate with various packages including PDIP, SOIC, and TSSOP, the MCP6022IP provides reliable, low-noise amplification for demanding industrial and extended temperature environments. Buy now and improve your circuit's fidelity and speed.
Get Microchip MCP6022IP today—built for high-speed, low-distortion precision in industrial and medical circuits.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6022IP?
You can click on the BUY or RFQ button to purchase MCP6022IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6022IP?
You can download the MCP6022IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6022IP?
Microchip Technology
