Microchip Technology TC7107CPL Analog-to-Digital Converter
The TC7107CPL is a high-resolution, 3-1/2 digit multipurpose analog-to-digital converter designed for precise measurements and stable displays. It features an internal voltage reference with low temperature drift of 20 ppm/°C, drives LED displays directly, and offers true polarity indication. The device is ideal for portable instrumentation, digital meters, bridge readouts, and thermometry, operating efficiently from a 9V battery with low power consumption of 10 mW. Its differential inputs enable ratiometric measurements with high impedance, ensuring reliability in various measurement applications.
Microchip Technology TC7107CPL Analog-to-Digital Converter Specifications:
- Number of Digits: 3-1/2
- Display Drive: Directly drives LED with 8mA per segment
- Reference Temperature Coefficient: 20 ppm/°C (TC7107A)
- Power Consumption: 10 mW
- Operating Voltage: 5V supply
- Input Impedance: High-impedance differential inputs (10120)
- Auto-Zero Cycle: Yes, ensures zero reading accuracy
- Output Rollover Error: Less than +1 count
- Linearity Deviation: Less than 1 count
- Measurement Range: 200 mV and 2V full scale options
- Temperature Range: 0°C to +70°C (Commercial), -25°C to +85°C (Industrial)
- Supply Voltage: +5V (single supply operation)
- Clock Frequency: 48 kHz for typical operation
- Auto-Zero Capacitor: 0.47 μF for 200 mV range, 0.047 μF for 2V range
- Reference Capacitor: 0.1 μF (recommended), larger values for higher voltage ranges
- Auto-Zero Cycle Duration: 1000 to 3000 counts
- Packaging: Available in 40-Pin PDIP, 44-Pin PLCC, and MQFP packages
- Application: Portable instrumentation, digital meters, bridge readouts, thermometer, null detectors

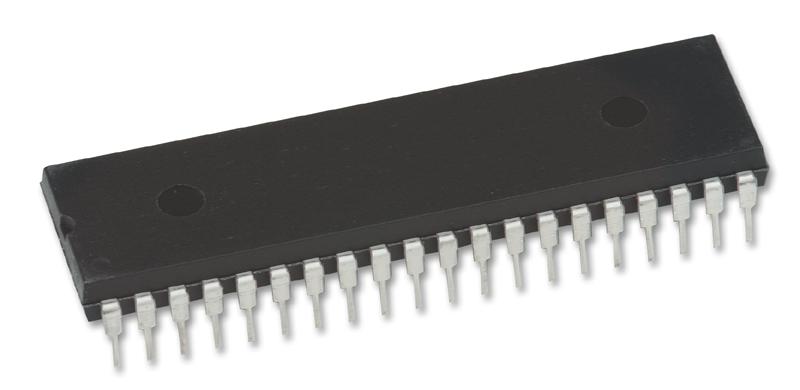

Buy the Buy Microchip TC7107CPL Part Number TC7107CPL Online
Order the Microchip TC7107CPL online today and experience high-precision 3-1/2 digit measurements with low drift reference. Perfect for portable meters, thermometry, and bridge readouts, this ADC offers stable, accurate readings, and drives LED displays directly. Its low power consumption of 10 mW makes it ideal for battery-powered systems. The device features high impedance differential inputs for reliable measurements, auto-zero cycle for zero accuracy, and multiple packages for versatile integration. Purchase now to enhance the performance of your measurement solutions with this high-quality ADC.
Get Microchip TC7107CPL today—built for precision, long-lasting durability, and ideal for high-accuracy measurement applications.
