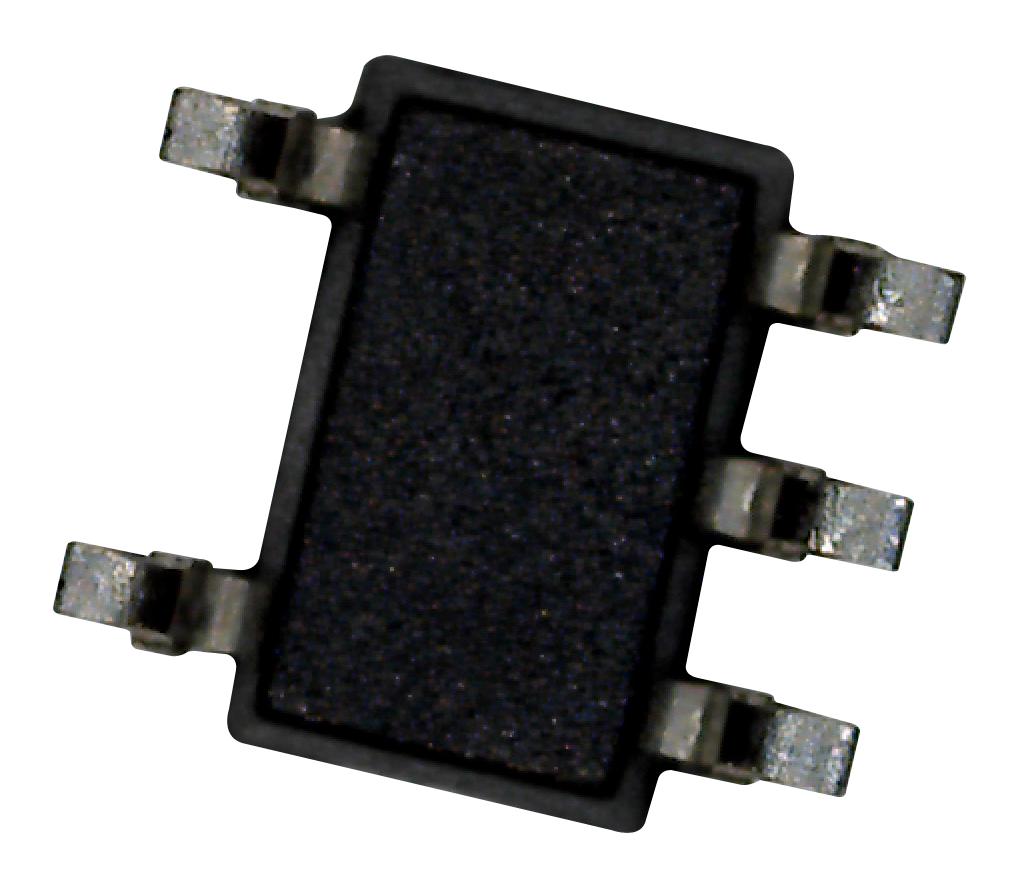

Microchip Technology MCP6V36UTELTY Zero-Drift Op Amp
The MCP6V36 family of zero-drift operational amplifiers offers exceptional low offset voltage correction, ultra-low noise, and high precision suitable for sensor conditioning, medical instrumentation, and portable devices. They operate from single voltages as low as 1.8V, feature rail-to-rail input/output, and maintain excellent PSRR and CMRR. These low-power, unity gain stable amps are available in compact packages like SC70, SOT-23, MSOP-8, TDFN, and TSSOP-14, providing reliable performance over extended temperature ranges up to +125°C, ideal for high-precision applications requiring stability and accuracy.
Microchip Technology MCP6V36UTELTY Zero-Drift Op Amp Specifications:
- Operation Voltage: 1.8V to 5.5V
- Offset Voltage: max ±25 µV
- Vos Drift: max +150 nV/°C
- Gain Bandwidth Product: 300 kHz (typical)
- Input Bias Current: typical 23 pA, max 5 pA
- Input Offset Current: max 130 pA
- VSWR: Rail-to-Rail Input/Output
- Temperature Range: -40°C to +125°C
- Packages available: SC70, SOT-23, MSOP-8, TDFN, TSSOP-14
- Two or four op amps in single, dual, quad configurations
- High PSRR and CMRR: minimum 110 dB
- Designed using CMOS process, auto-zeroed with chopper stabilization
- Suitable for sensor conditioning, medical instrumentation, portable devices
Buy the Microchip Series MCP6V36 Zero-Drift Op Amps: MCP6V36UTELTY
Purchase the Microchip MCP6V36UTELTY now to experience ultra-low offset correction, high stability, and extended temperature operation. Perfect for sensor calibration, medical devices, and portable instruments, this low-power, rail-to-rail op amp offers reliable and precise performance. Its compact packages make integration easy for space-constrained designs. Shop online today to ensure your projects benefit from Microchip's advanced CMOS zero-drift technology, delivering outstanding accuracy and thermal stability for demanding applications.
Get Microchip MCP6V36UTELTY today—built for precision and long-lasting durability in low-voltage, high-accuracy applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6V36UTELTY?
You can click on the BUY or RFQ button to purchase MCP6V36UTELTY from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6V36UTELTY?
You can download the MCP6V36UTELTY datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6V36UTELTY?
Microchip Technology
