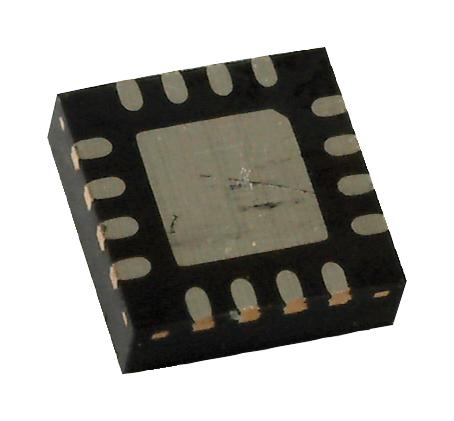

Microchip Technology MIC2800G2SYMLTR Power Management IC
The MIC2800 is a high-performance power management IC featuring a 2MHz PWM buck converter combined with two low dropout regulators, enabling high efficiency and ultra-low noise outputs for cost-effective, compact embedded systems. It supports input voltages from 2.7V to 5.5V and provides three regulated outputs: a main switch-mode regulator delivering up to 600mA, and two linear regulators each capable of 300mA. Its low quiescent current mode (LOWQ) reduces power consumption below 30pA, ideal for portable and RF applications requiring minimal interference, high efficiency, and flexible voltage regulation in a tiny 16-pin QFN package.
Microchip Technology MIC2800G2SYMLTR Power Management IC Specifications:
- Input Voltage Range: 2.7V to 5.5V
- DC/DC Converter Frequency: 2 MHz
- Maximum Output Current (DC/DC): 600 mA
- LDO1 and LDO2 Current Capacity: 300 mA each
- Low Quiescent Current in LOWQ Mode: <30 pA
- Output Noise in LOWQ Mode: 75 UVems
- Efficiency: >90% at load currents up to 600 mA
- Package: 16-pin 3mm x 3mm QFN
- Operation Temperature: -40°C to +125°C
- Features: Power-on Reset, adjustable POR delay, thermal shutdown, current limit, low noise output, small ceramics for stability
Buy the Microchip MIC2800 – Reliable Power Management IC for Industrial Applications
Purchase the Microchip MIC2800 online today—designed for high-efficiency power conversion with integrated buck regulator and low noise linear regulators ideal for portable, RF, and embedded applications. Its compact 16-pin QFN package and low quiescent current make it perfect for space-constrained, battery-powered systems requiring multiple regulated voltages, thermal protection, and flexible power control. Ensure reliable power delivery and minimal interference by choosing MIC2800—your solution for efficient and compact power management in demanding industrial and consumer electronics.
Get Microchip MIC2800 today—built for precision, ultra-low noise, and long-lasting durability in embedded and portable systems.
Frequently Asked Questions
Where can I buy Microchip Technology MIC2800G2SYMLTR?
You can click on the BUY or RFQ button to purchase MIC2800G2SYMLTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC2800G2SYMLTR?
You can download the MIC2800G2SYMLTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC2800G2SYMLTR?
Microchip Technology
