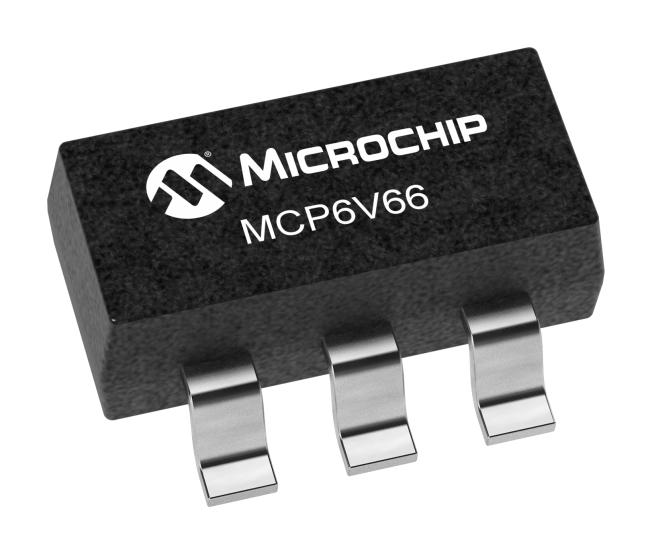

Microchip Technology MCP6V66TEOT Zero-Drift Op Amp
The MCP6V66 family of zero-drift operational amplifiers offers ultra-low offset voltage correction and minimal drift, ideal for precision sensor conditioning, temperature measurement, and medical instrumentation. They operate with a supply voltage range of 1.8V to 5.5V, feature rail-to-rail inputs and outputs, and provide high common-mode and power supply rejection ratios. Available in small packages like SC70, SOT-23, MSOP, TDFN, and TSSOP, these amplifiers are designed for battery-powered and space-constrained applications requiring high accuracy, low noise, and extended temperature operation from -40°C to +125°C.
Microchip Technology MCP6V66TEOT Zero-Drift Op Amp Specifications:
- Supply Voltage Range: 1.8V to 5.5V
- Input Offset Voltage: ±25 nV (max)
- Offset Voltage Drift: ±150 nV/°C (max)
- Gain Bandwidth Product: 1 MHz (typical)
- Input Bias Current: ±50 pA (max)
- Common Mode Rejection Ratio: 111 dB (min)
- Power Supply Rejection Ratio: 110 dB (min)
- Input/Output Voltage Swing: Rail-to-Rail
- Noise: 26 nV/Hz (density)
- Operating Temperature Range: -40°C to +125°C
- Package Types: SC70, SOT-23, MSOP, TDFN, TSSOP
- Designed using advanced CMOS process for low power consumption
- Ideal for portable instrumentation, sensor conditioning, and temperature measurement
Buy the Microchip Series MCP6V66 Zero-Drift Op Amp: MCP6V66TEOT
Experience exceptional precision with the Microchip MCP6V66TEOT zero-drift op amp. Designed for low offset, minimal drift, and rail-to-rail operation, it is perfect for sensor conditioning, medical instrumentation, and portable devices. Features include high rejections for power supply and common-mode noise, extended temperature range, and small package options like SC70, SOT-23, MSOP, and TDFN. Its low power consumption makes it ideal for battery-powered applications. Order online today and ensure your project benefits from reliable, accurate amplification with long-lasting durability.
Get Microchip MCP6V66TEOT today—built for precision, ultra-low offset, and long-lasting durability in space-constrained applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6V66TEOT?
You can click on the BUY or RFQ button to purchase MCP6V66TEOT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6V66TEOT?
You can download the MCP6V66TEOT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6V66TEOT?
Microchip Technology
