Microchip Technology MD1210K6G High Speed Dual MOSFET Driver
The MD1210 is a high-speed dual MOSFET driver designed to drive high-voltage P and N-channel MOSFETs in applications like medical ultrasound imaging, piezoelectric transducer drivers, and non-destructive testing. It features 6ns rise and fall time with 1000pF load capacity, peak 2.0A output current, and operates from 1.2V to 5.0V logic levels. The device includes level shifting, low jitter design, and outputs capable of swinging below ground, suited for high-frequency, capacitive loads with thermally-enhanced packaging for thermal management.
Microchip Technology MD1210K6G High Speed Dual MOSFET Driver Specifications:
- Output Current: 2.0A peak
- Rise and fall time: 6ns
- Load Capacitance: 1000pF
- Input Logic Voltage: 1.2V to 5.0V CMOS compatible
- Supply Voltage: 4.5V to 13V
- Outputs can swing below ground

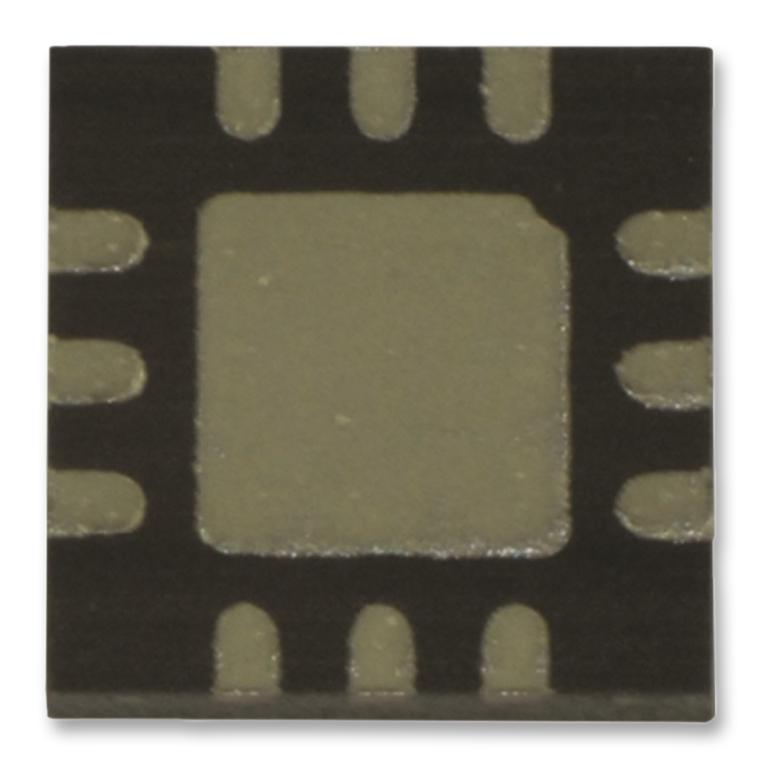

- Thermally-enhanced QFN package
- Peak output current dependent on supply and load
- Propagation delay: 70ns (high to low and low to high)
- High speed operation up to 100MHz
- Low jitter design for precise switching
- Input: INA, INB, OE controls
- Built-in threshold level shifter
- GND and VSS inputs connected to ground
Buy the Buy Supertex MD1210 High Speed Dual MOSFET Driver Part Number MD1210K6G Online
Order the Supertex MD1210K6G online today and experience fast switching speeds, high peak output current, and excellent load handling for your ultrasonic and testing projects. With its low jitter, thermal management, and wide voltage range, this dual MOSFET driver ensures reliable performance and easy integration into high-frequency circuits. Whether designing medical ultrasound equipment or piezoelectric transducer drivers, this device provides the speed and stability you require for precision control in demanding applications. Purchase now to enhance your system’s capability with a trusted industrial solution.
Get Supertex MD1210K6G today—built for high-speed switching, capacitive loads, and reliable performance in ultrasonic and NDT applications.
Frequently Asked Questions
Where can I buy Microchip Technology MD1210K6G?
You can click on the BUY or RFQ button to purchase MD1210K6G from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MD1210K6G?
You can download the MD1210K6G datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MD1210K6G?
Microchip Technology
