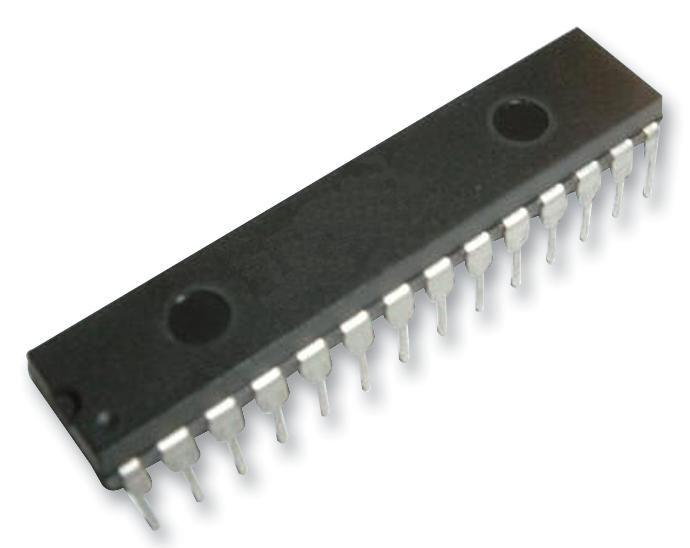

Microchip Technology PIC18F27Q43ISP Microcontroller
The PIC18 Q43 family microcontrollers are versatile 28/40/44/48-pin devices suited for real-time control applications. They feature a 12-bit ADC with automatable computation, supporting advanced touch sensing, filtering, and oversampling. The family includes a new 16-bit PWM module with dual outputs, multiple timers, logic cells, and PWM generators. Equipped with high-precision internal oscillators, multiple timers, and extensive I/O and peripherals including UART, SPI, I2C, comparators, DAC, and analog-to-digital converters, these devices ensure optimized power usage, reliable operation, and flexible configurations for sophisticated embedded projects.
Microchip Technology PIC18F27Q43ISP Microcontroller Specifications:
- Operating Voltage Range: 1.8V to 5.5V
- Temperature Range: -40°C to 85°C (Industrial), -40°C to 125°C (Extended)
- Core Speed: Up to 64 MHz with 62.5 ns instruction cycle
- Memory: Up to 128 KB Flash, 8 KB SRAM, 1024 Bytes EEPROM
- Power Consumption: Sleep mode < 1 μA at 3V, Active current 48 μA at 32 kHz, 3V
- Peripherals: Three 16-bit PWM modules, four 16-bit timers, three 8-bit timers, eight logic cells
- Analog: 12-bit ADC with support for 43 channels, internal DAC, two comparators, voltage reference
- Communication: Five UARTs (supporting LIN, DMX, DALI, protocols), two SPI, one I2C
- I/O Pins: 25/36/44 pins depending on device package, configurable via Peripheral Pin Select
- Clock: High-precision internal oscillator up to 64 MHz, external crystal options
- Power-saving: Doze, Idle, Sleep modes, peripheral module disable, low-power wake features
- Package Types: 28-pin SPDIP, SSOP, SOIC; 40-pin, 44-pin, 48-pin PDIP, TQFP, VQFN
Buy the Microchip PIC18 Q43 – Reliable Control for Industrial Applications
Purchase the Microchip PIC18F27Q43 microcontroller online today and benefit from its advanced touch sensing, multiple communication protocols, and power-efficient operation, ideal for high-performance embedded control applications. Available with extensive I/O, multiple timers, and versatile analog features, this device ensures reliable performance for a wide range of industrial and consumer projects. Speed up your development process by ordering now and unlock the full potential of this sophisticated control solution.
Order your Microchip PIC18F27Q43 high-performance microcontroller today and enhance your embedded control projects with reliable and versatile features.
