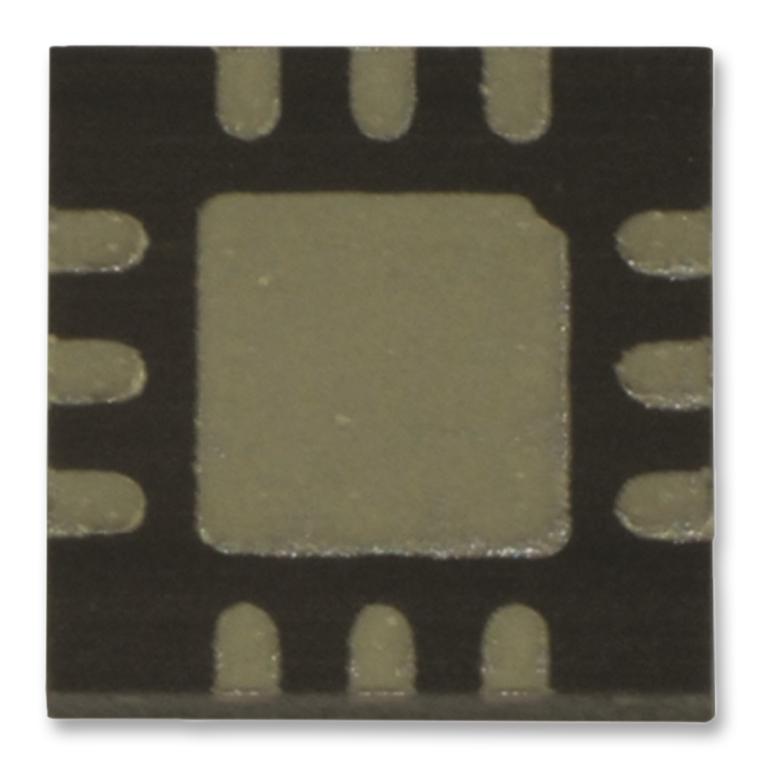

Microchip Technology MD1213K6G Dual-MOSFET Driver
The Microchip MD1213 is a high-speed dual-MOSFET driver designed for quick switching applications. It offers 6ns rise and fall times with a 1000 pF load, peak source and sink currents of up to 2A, and operates from 1.8V to 5V logic. Suitable for medical ultrasound, piezoelectric transducers, and non-destructive testing, its thermally enhanced 12-lead QFN package features separate power connections for high and low-side circuits, ensuring reliable high-speed performance in demanding environments.
Microchip Technology MD1213K6G Dual-MOSFET Driver Specifications:
- Supply Voltage Range: 4.5V to 13V
- Peak Output Current: 2A (source and sink)
- Rise and Fall Time: 6ns (typical)
- Load Capacitance: 1000 pF
- Input Logic Voltage: 1.8V to 5V
- Maximum Junction Temperature: +125°C
- Operating Ambient Temperature: -40°C to +85°C
- Package: 12-lead QFN, 4.00x4.00mm body, 1.00mm height
- Thermal Resistance: 47°C/W
- Output Voltage Swing: to Vpp and ground
- Low-Inductance Package for high-speed switching
- ESD Rating: Sensitive device, handling precautions recommended
Buy the Buy Microchip MD1213K6G High-Speed Dual-MOSFET Driver Part Number MD1213K6G Online
Purchase the Microchip MD1213K6G dual-MOSFET driver online and experience superior high-speed switching performance suitable for medical ultrasound, piezoelectric transducers, and testing equipment. Its advanced design ensures fast response times of 6ns, peak currents up to 2A, and compatibility with logic levels from 1.8V to 5V. The compact 12-lead QFN package with thermally enhanced features guarantees durability and efficient heat dissipation. Order now to improve your circuits' efficiency with this reliable high-voltage driver.
Buy Microchip MD1213K6G high-speed dual-MOSFET driver now and enhance your high-voltage switching and ultrasound applications with reliable, fast operation.
Frequently Asked Questions
Where can I buy Microchip Technology MD1213K6G?
You can click on the BUY or RFQ button to purchase MD1213K6G from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MD1213K6G?
You can download the MD1213K6G datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MD1213K6G?
Microchip Technology
