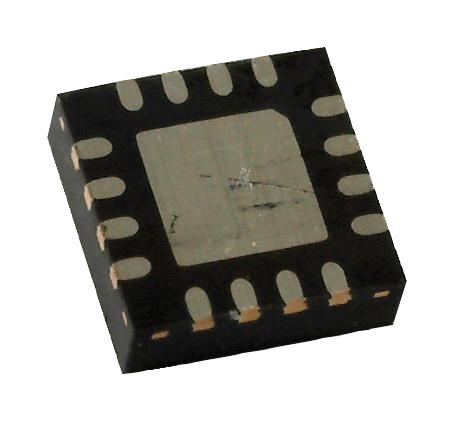

Microchip Technology MIC2800G1JSYMLTR Power Management IC
The MIC2800 is a high-performance power management IC designed for efficient embedded systems. It features a 2 MHz switching regulator with up to 600 mA output, complemented by two 300 mA low dropout regulators. Its adjustable outputs support voltages down to 0.8V and are optimized for applications like portable devices, RF systems, and backup power solutions. The device offers a LOWQ mode for ultra-low quiescent current under light load, achieving noise levels as low as 75 UVems, ideal for RF circuitry. Compact in a 16-pin 3mm x 3mm QFN package, it ensures high efficiency (>90%) and reliable operation within industrial temperature ranges.
Microchip Technology MIC2800G1JSYMLTR Power Management IC Specifications:
- Input Voltage Range: 2.7V to 5.5V
- DC/DC Converter Frequency: 2 MHz
- DC/DC Output Current: Up to 600 mA in PWM
- LDO1 and LDO2 Output Current: 300 mA each
- Output Voltage Range: Down to 0.8V for LDOs
- Efficiency: Greater than 90%
- Low Quiescent Current Mode (LOWQ): <30 pA
- Output Noise in LOWQ Mode: 75 UVems
- Ripple: 75 UVems at 2 MHz switching
- Package Type: 16-pin 3mm x 3mm QFN
- Temperature Range: -40°C to +125°C
- Protection Features: Thermal shutdown, current limit
- Input Capacitors: Recommended at least 2.2 uF ceramic
- Output Capacitors: Minimum 2.2 uF ceramic for stability
- In applications: Embedded Microcontrollers, portable and wearable systems, RF modules, backup power supplies
- Enables: ACTIVE high EN1 and EN2 pins for load control
- Pin Functions: LOWQ for power mode selection, POR for reset, bias and ground pins for circuitry
Buy the Microchip MIC2800 – Reliable Power Management for Industrial Applications
Purchase the Microchip MIC2800 today for your portable device, RF system, or backup power application. This compact high-efficiency power management IC offers a 2 MHz switching regulator combined with dual 300 mA LDOs, making it ideal for space-constrained designs. Its LOWQ mode ensures ultra-low quiescent current and minimal output noise, perfect for sensitive RF circuitry. With protections like thermal shutdown, reliable operation from -40°C to +125°C, and a small 16-pin QFN package, it’s designed for durability, efficiency, and ease of integration. Order online now to ensure your system’s power needs are met with precision and stability.
Get Microchip MIC2800 today—built for high efficiency, low noise, and reliable power regulation in portable and RF systems.
