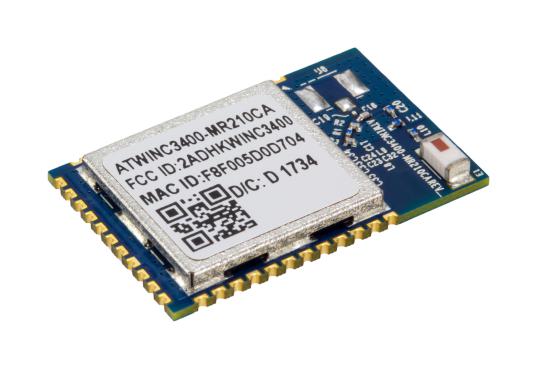

Microchip Technology ATWINC3400MR210CA131 Wireless Network Module
The ATWINC3400-MR210CA is an integrated wireless network controller supporting IEEE 802.11 b/g/n Wi-Fi at 20MHz (1x1) and Bluetooth 5.0. It features a compact design with an integrated chip antenna, power amplifier, low-noise amplifier, transmit/receive switch for Wi-Fi and Bluetooth, and a power management unit. The module offers high performance with superior sensitivity and range through advanced PHY signal processing and supports network protocols such as TCP, UDP, DHCP, ARP, HTTP, SSL, and DNS. Security features include WPA/WPA2 Personal, WPA2 Enterprise (firmware v.1.31 or later), TLS, and SSL. It operates within a temperature range of -40°C to +85°C, supports Class 2 transmission with adaptive frequency hopping, and includes an integrated network IP stack to reduce host CPU load. The module is optimized for low power consumption and high-performance mobile applications, with an integrated chip antenna and support for Bluetooth Low Energy (BLE) 5.0 certification. Lead times may vary due to high market demand, and the product is exempt from discounts.
Microchip Technology ATWINC3400MR210CA131 Wireless Network Module Specifications:
- Frequency Range: 2.412 GHz to 2.472 GHz
- Modulation: 802.11b: DQPSK, DBPSK, CCK; 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
- Data Rate: 802.11b: 1, 2, 5.5, 11 Mbps; 802.11g/n: 6.5 to 72.2 Mbps (20 MHz, GI options)
- WPA/WPA2 Security: Support for WEP, WPA, WPA2 (personal and enterprise)
- Physical Interface: SPI, UART, GPIO
- Power Supply: 2.7V to 3.6V; VBAT range 3.0V to 4.2V
- Operating Temperature: -40°C to +85°C
- Dimensions: 22.43 x 14.73 mm; Thickness: 2.09 mm; Pad pitch: 1.20 mm
- Antenna: Integrated chip antenna or u.FL connector for external antenna
- Bluetooth: Bluetooth 5.0 Low Energy certification
- Protocols Supported: TCP, UDP, DHCP, ARP, HTTP, TLS, DNS, SNTP
- Operating Modes: Station and Access Point
- Additional features: Advanced PHY signal processing, adaptive frequency hopping, network IP stack
- Compliance: Wi-Fi Alliance Certified, BLE 5.0 certified
Buy the Buy Microchip ATWINC3400MR210CA Part Number 131 Online
Enhance your IoT and mobile projects with the Microchip ATWINC3400MR210CA wireless module, supporting Wi-Fi b/g/n and BLE 5.0. Compact and powerful, it offers superior sensitivity, security features, and integrated antenna options. Designed for low power consumption, it provides high throughput and protocol support including TCP, UDP, DHCP, HTTP, and SSL. With an operating temperature of -40°C to +85°C and advanced PHY processing, it ensures reliable connectivity in demanding environments. Make your purchase online today for fast delivery and seamless integration.
Buy Microchip ATWINC3400MR210CA now and experience unmatched reliability and performance in high-speed wireless connectivity and low-power applications.
Frequently Asked Questions
Where can I buy Microchip Technology ATWINC3400MR210CA131?
You can click on the BUY or RFQ button to purchase ATWINC3400MR210CA131 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATWINC3400MR210CA131?
You can download the ATWINC3400MR210CA131 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATWINC3400MR210CA131?
Microchip Technology
