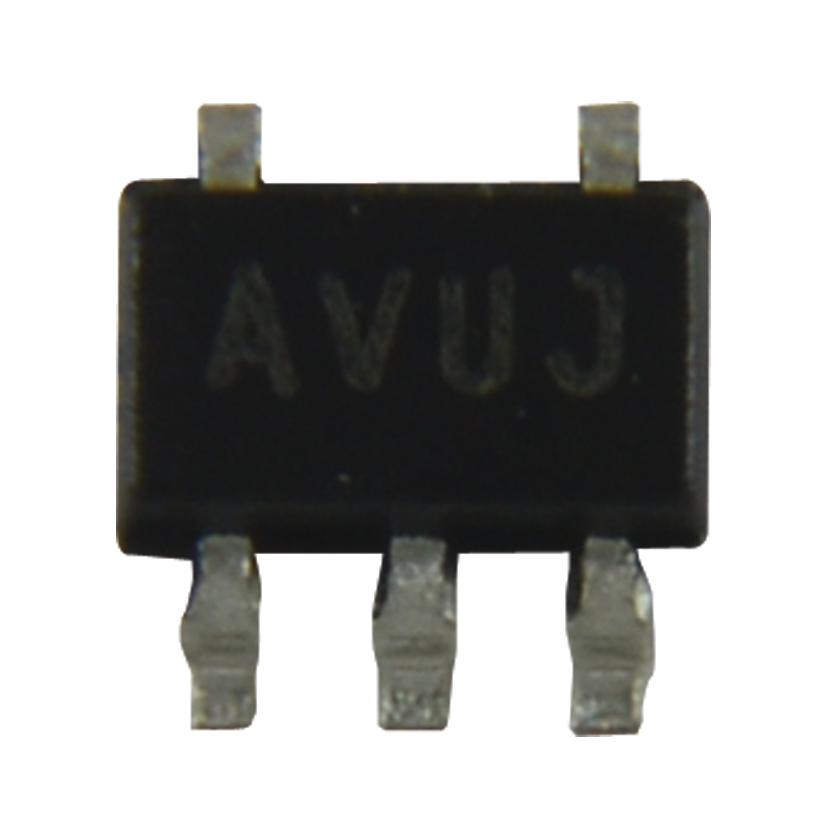

Microchip Technology MCP9701TELT Temperature Sensor
The MCP9701T-E/LT is a linear active thermistor IC that converts temperature into an analog voltage directly. It requires no external signal conditioning, with VOUT connected to a microcontroller's ADC. It provides approximately 1°C resolution per bit at 5V reference for 8-bit ADCs, with typical accuracy of ±1°C from 0°C to +70°C when calibrated at +25°C. Offering a 19.5 mV/°C output coefficient, low operating current of 6 µA, and capable of driving large capacitive loads, it suits temperature sensing, instrumentation, consumer electronics, and portable systems.
Microchip Technology MCP9701TELT Temperature Sensor Specifications:
- Output Voltage Range: 200 mV to 3 V over temperature
- Temperature Coefficient: 19.5 mV/°C (typical)
- Accuracy: ±1°C from 0°C to +70°C with calibration at +25°C
- Operating Voltage Range: 3.1V to 5.5V
- Operating Current: 6 µA (typical)
- Input/Output Capacitance Drive Capability: Large capacitive loads
- Temperature Range: -10°C to +125°C (Extended Temperature)
- Package Types: 3-pin SOT-23, TO-92-3, SC70-5
- Storage Temperature: -65°C to +150°C
- Dimensions (approximate): Length 2.67–2.90 mm, Width 1.16–2.64 mm depending on package
- Designed for applications like temperature monitoring, portable electronics, and power management systems
Buy the Buy Microchip MCP9701TELT Part Number MCP9701TELT Online
Order the Microchip MCP9701TELT temperature sensor online today and enhance your system with a low-power, high-accuracy analog temperature measurement solution. This sensor simplifies design by eliminating external signal conditioning, offering easy integration with microcontrollers for precise temperature monitoring. Its capability to drive large capacitive loads and immunity to parasitic capacitance makes it ideal for portable devices, instrumentation, and consumer electronics. Purchase now for fast delivery and dependable performance in your application.
Buy Microchip MCP9701TELT now and experience unmatched reliability and low power temperature sensing for your electronic systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP9701TELT?
You can click on the BUY or RFQ button to purchase MCP9701TELT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP9701TELT?
You can download the MCP9701TELT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP9701TELT?
Microchip Technology
