Microchip Technology MIC33M356FAYMPTR High-Current Power Module
The MIC33M356 is a high-efficiency, programmable 3A synchronous buck converter power module with integrated inductor, featuring HyperLight Load mode for ultra-fast transient response. It supports input voltages from 2.4V to 5.5V and offers output voltages programmable via I2C from 0.6V to 1.28V with 5 mV resolution, or up to 3.84V with different resolutions. Designed for portable, battery-powered applications, it ensures accuracy, a wide thermal range, thermal shutdown, and soft start, making it ideal for SSDs, tablets, notebooks, FPGA, DSP, and ASIC power.
Microchip Technology MIC33M356FAYMPTR High-Current Power Module Specifications:
- Input Voltage Range: 2.4V to 5.5V
- Output Current: 3A
- Output Voltage Programmable: 0.6V to 1.28V (5 mV resolution) or 0.6V to 3.84V (10/20 mV resolution)
- High Efficiency: Up to 95%
- Ultra-Fast Transient Response
- Output Voltage Accuracy: ±1.5% over line/load/temperature
- Switching Frequency: Up to 3.4 MHz
- Enables safe startup with pre-biased load
- Thermal Shutdown, Overcurrent, and Short Circuit Protection
- Supports I2C interface at 0x5B address
- Input Voltage: 2.4V to 5.5V, suitable for single-cell Li-ion batteries
- Power Good (PG) Open-Drain Output for sequencing
- Soft start with adjustable ramp time via register

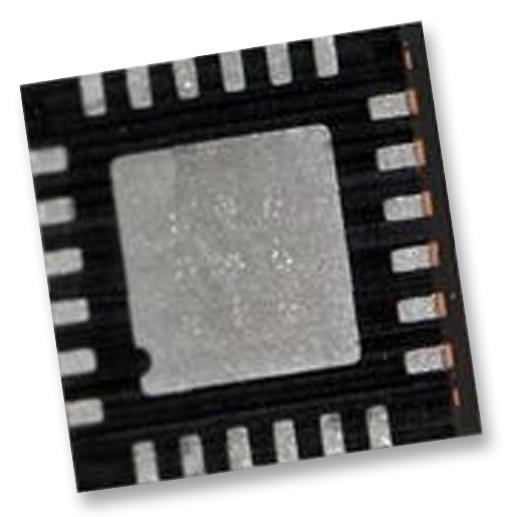

- Package: 24-pin QFN (3mm x 4.5mm x 1.8mm)
- Operating Junction Temperature: -40°C to +125°C
Buy the Microchip MIC33M356 – Reliable Buck Converter for Industrial Applications
Purchase the Microchip MIC33M356 today—your go-to power module for precision voltage regulation, ultra-fast transient response, and efficient power delivery in portable, industrial, and computing applications. With advanced I2C programmability, integrated inductor, and comprehensive protection features, this high-performance buck converter ensures reliable operation under a wide temperature range, making it ideal for SSDs, FPGA, DSP, and low-voltage ASIC power supplies. Order now to enhance your power management system with proven quality and durability.
Get Microchip MIC33M356 today—designed for high efficiency, programmable voltage, and robust protection, perfect for portable and industrial power needs.
Frequently Asked Questions
Where can I buy Microchip Technology MIC33M356FAYMPTR?
You can click on the BUY or RFQ button to purchase MIC33M356FAYMPTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC33M356FAYMPTR?
You can download the MIC33M356FAYMPTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC33M356FAYMPTR?
Microchip Technology
