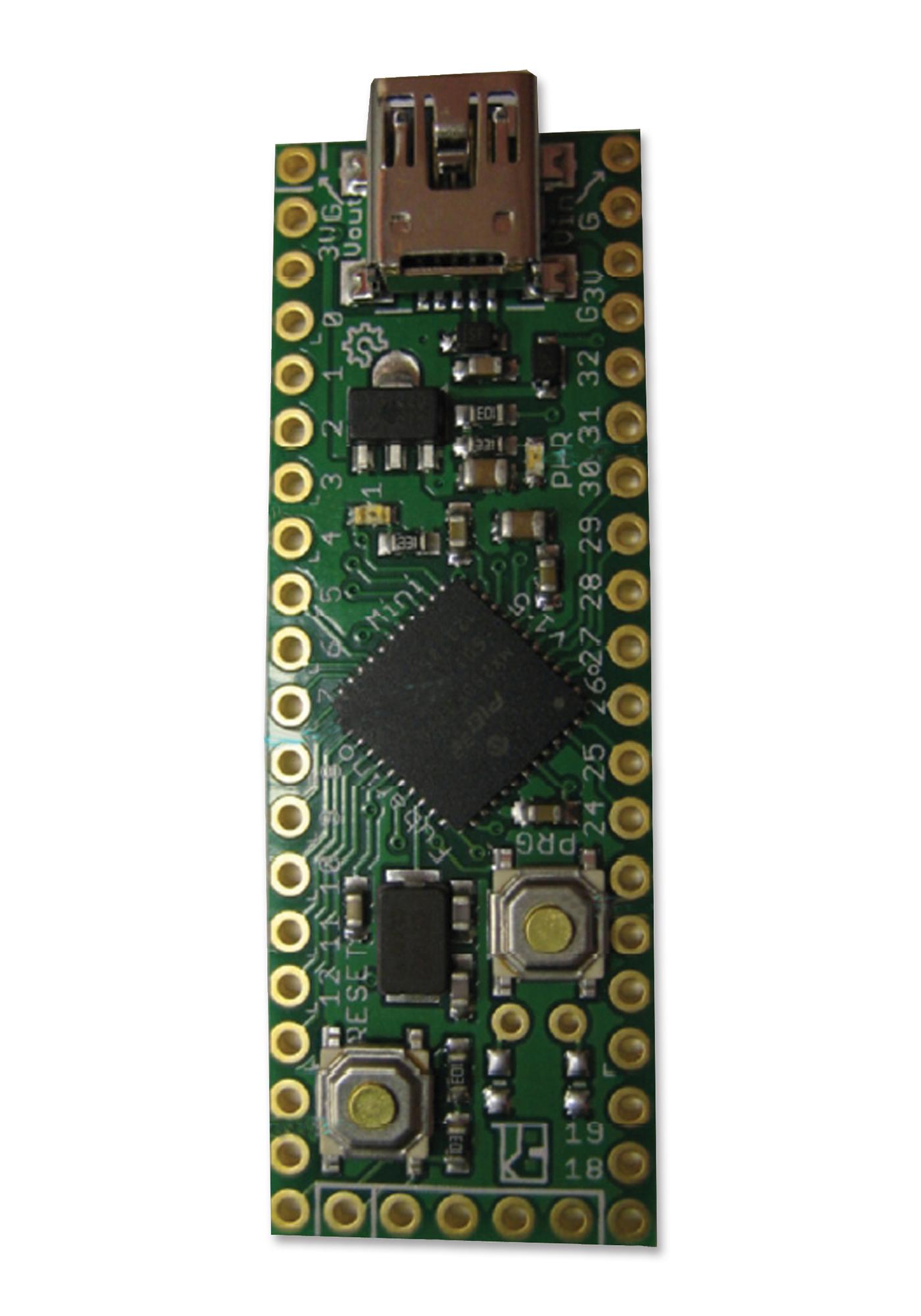

Microchip Technology TCHIP011 Microcontroller Development Board
The Fubarino Mini is a compact, microcontroller development board featuring a PIC32MX250F128D-50I/ML microcontroller with 128KB Flash and 32K RAM. Designed for Arduino compatibility and supporting MPIDE, it offers up to 33 I/O pins, USB connectivity for power and programming, and headers for easy breadboard integration. Its small size (5.1 cm x 1.9 cm) makes it suitable for prototypes and space-constrained projects. Additional features include reset and program buttons, a separate ICSP connector, and support for external crystals, making it a versatile tool for embedded development.
Microchip Technology TCHIP011 Microcontroller Development Board Specifications:
- Microcontroller: PIC32MX250F128D-50I/ML with 128KB Flash and 32K RAM
- Size: 5.1 cm x 1.9 cm
- Operating Voltage: 3.3V
- Power Supply: USB, Vin (2.8V to 13.2V), or 3.3V pin
- Clock Speed: 48MHz
- I/O Pins: Max 33 (typically 27) available for user
- Serial Ports: USB serial, UART1 on pins 17 (TX) and 18 (RX), UART2 on pins 26 (TX) and 25 (RX)
- Crystal Support: Pads for 32 KHz crystal
- Buttons: Reset and PRG (programming)
- Headers: Optional, not installed, for breadboard connection
- ICSP Connector: For hardware programming/debugging with PICKit3 or other programmers
- USB Connectivity: Power, serial, mass storage capabilities
- Supported platforms: MPIDE, Arduino compatibility
- Maximum I/O pins: 33
- Programming: Factory pre-installed USB bootloader
- Additional features: TDO, TDI, TCK, TMS, SCL, SDA, configurable PPS functions
Buy the Microchip Series Fubarino Mini: TCHIP011
Get the Microchip Series Fubarino Mini development board online today. This compact, Arduino-compatible microcontroller platform features a PIC32 chip with 128KB Flash, 32K RAM, and multiple I/O ports. Perfect for prototyping and embedded projects, it includes USB connectivity for power and programming, buttons, headers for breadboard use, and support for external crystals. Designed for versatility and ease of use, it is ideal for developers seeking a reliable, space-efficient development solution for complex applications.
Order your Microchip Series Fubarino Mini today and give your projects the dependable quality they deserve with versatile programming options.
