Microchip Technology MIC5019YFTTR MOSFET Driver
The MIC5019YFT is a high-side and low-side MOSFET driver designed for switching N-channel enhancement MOSFETs in various power applications. Operating from 2.7V to 9V, it generates gate voltages up to 16V at VDD = 9V, with low supply current and shutdown power consumption. Its ultra-small 4-pin Thin QFN package makes it suitable for compact designs. It includes a charge pump for higher gate voltages, making it ideal for load switching, solenoid, and motor driver circuits, with robust thermal and ESD protection.
Microchip Technology MIC5019YFTTR MOSFET Driver Specifications:
- Supply Voltage: 2.7V to 9V
- Gate Drive Voltage: up to 16V at VDD = 9V, 8V at VDD = 2.7V
- Maximum Junction Temperature: 125°C
- Power Consumption: <1μA shutdown, typical 77μA at VDD=3.3V

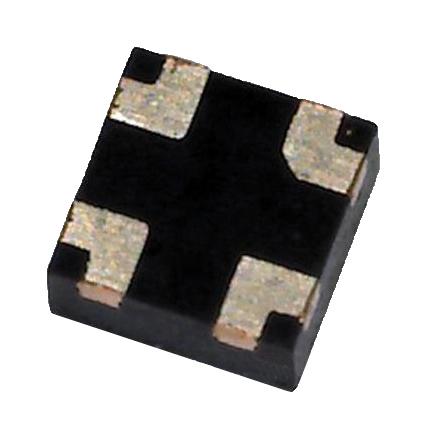

- Package: 4-pin 1.2mm x 1.2mm Thin QFN
- Charge Pump Voltage: approximately 16V, limited by zener diode
- Operating temperature: -40°C to +125°C
- ESD Rating: 1.5kV (HBM)
- Phenomena: Ultra-small form factor, suitable for high-density applications
- Includes ESD protection with clamp diodes and zener diodes
Buy the Micrel Series MIC5019 High-Side MOSFET Driver: MIC5019YFTTR
Purchase the Micrel Series MIC5019YFT high-side and low-side MOSFET driver online today and enhance your power switching circuits with its compact design and integrated charge pump. Ideal for load switching, motor control, and solenoid applications, this driver operates from 2.7V to 9V and generates gate voltages up to 16V. Its ultra-small 4-pin Thin QFN package offers excellent thermal performance and low power consumption, making it perfect for space-constrained, high-performance electronics projects. Get yours now for reliable, efficient power switching.
Order your Micrel Series MIC5019YFTTR high-side and low-side MOSFET driver today and ensure reliable switching performance in your power management circuits.
Frequently Asked Questions
Where can I buy Microchip Technology MIC5019YFTTR?
You can click on the BUY or RFQ button to purchase MIC5019YFTTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC5019YFTTR?
You can download the MIC5019YFTTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC5019YFTTR?
Microchip Technology
