Microchip Technology MCP2515DMPCTL CAN Controller
The MCP2515 is a stand-alone CAN controller integrating the CAN protocol engine, filters, masks, transmit and receive buffers, and supports both standard and extended frames. It interfaces via an SPI port supporting Mode 0 and Mode 1, with a high-speed SPI interface at 10 MHz, and includes features like message prioritization, error detection, and flexible buffer controls. It operates from 2.7V to 5.5V, with industrial and extended temperature ranges. Suitable for industrial automation, automotive, and embedded CAN bus applications, it simplifies CAN network integration with robust error handling and customizable filtering.
Microchip Technology MCP2515DMPCTL CAN Controller Specifications:
- Supports CAN V2.0B at 1 Mb/s
- Data field length: 0-8 bytes
- Interfaces via SPI 0,0 and 1,1 modes at 10 MHz
- Operating voltage: 2.7V — 5.5V
- Power consumption: 5 mA active, 1 A sleep
- Temperature ranges: Industrial -40°C to +85°C, Extended -40°C to +125°C
- Includes 3 transmit buffers, 2 receive buffers, filters, and masks
- Clock out pin configurable for system timing and diagnostics
- Supports message prioritization, error detection, and bus monitoring
- Operates with internal error counters and comprehensive error management
- Uses high-speed SPI for fast communication and configuration
- Package options include PDIP, SOIC, TSSOP, QFN with specified dimensions
- Designed for automotive, industrial, and embedded communication systems

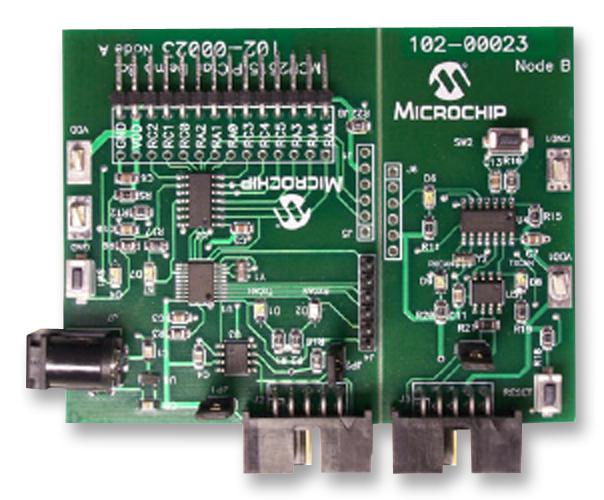

Buy the Buy Microchip MCP2515 Part Number MCP2515DMPCTL Online
Order the Microchip MCP2515 online today and simplify your CAN network integration. With support for standard and extended frames, high-speed SPI communication at 10 MHz, and comprehensive filtering options, this controller ensures reliable performance in automotive, industrial, and embedded applications. Its operating range from 2.7V to 5.5V and operating temperatures from -40°C to +125°C make it suitable for harsh environments. Enhance your system’s robustness with this easy-to-integrate and feature-rich CAN controller.
Buy Microchip MCP2515 now and experience unmatched reliability and performance in your CAN bus systems, with robust error detection and flexible filtering features.
