Microchip Technology MSC080SMA120S Silicon Carbide Power MOSFET
The MSC080SMA120S is a high-voltage silicon carbide (SiC) N-channel power MOSFET designed for efficient, reliable switching in industrial and power electronics applications. It features a drain-source voltage of 1200 V, low gate charge, fast switching capabilities, high thermal stability up to 175°C, and a robust body diode. Suitable for PV inverters, motor drives, smart grids, and EV power systems, it offers superior avalanche ruggedness, low RDson, and RoHS compliance, enabling lighter, more compact, and highly efficient systems.
Microchip Technology MSC080SMA120S Silicon Carbide Power MOSFET Specifications:
- Drain-source voltage: 1200 V
- Continuous drain current at 25°C: 35 A
- Continuous drain current at 100°C: 25 A
- Pulsed drain current: 87 A
- Gate-source voltage: ±23 V
- Total power dissipation at 25°C: 182 W
- Junction-to-case thermal resistance: 0.55 to 0.83 °C/W
- Maximum junction temperature: 175°C
- Storage temperature: -55°C to 150°C
- Soldering temperature (10s, 1.6mm from case): 260°C
- Package weight: 0.14 oz
- Body diode forward voltage: 4.0 V
- Reverse recovery time: 34 ns
- Body diode reverse recovery charge: 200 nc
- Gate charge: 84 nc at specified conditions
- On-resistance (RDson): typical 80 mΩ at 25°C
- Switching energy (on/off): specified in datasheet with typical values

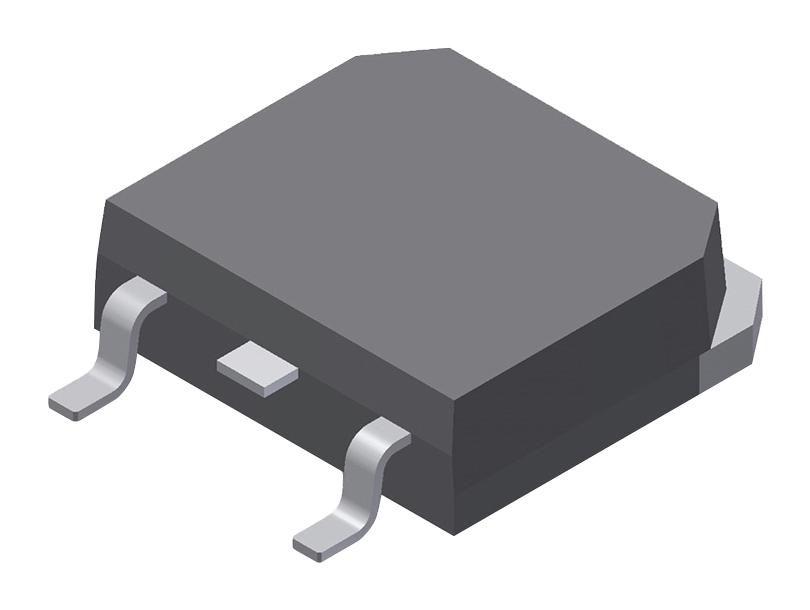

Buy the Buy Microsemi Silicon Carbide N-Channel Power MOSFET Part Number MSC080SMA120S Online
Purchase the Microsemi MSC080SMA120S Silicon Carbide Power MOSFET online today to enhance your high-voltage power systems. Featuring 1200 V breakdown voltage, low gate charge, fast switching, and excellent thermal stability up to 175°C, this device is ideal for PV inverters, motor drives, smart grids, and EV chargers. Its robust construction, low RDson, and built-in body diode reduce system complexity and improve efficiency. Order now to benefit from reliable delivery, comprehensive support, and advanced power solutions that help you build lighter, more efficient systems.
Buy Microsemi MSC080SMA120S now and experience unmatched reliability and high-performance power switching for industrial, automotive, and energy systems.
