Microchip Technology PIC16C7704P Microcontroller 8-bit CMOS with A/D converter
The PIC16C7704P is a high-performance, low-cost, 8-bit CMOS microcontroller with integrated features including a 14-bit instruction set, 128 bytes of RAM, multiple timers, an A/D converter, and a serial port. It employs Harvard architecture with a two-stage pipeline, executes most instructions in a single cycle, and supports various oscillator options such as LP, XT, HS, and RC. Features include power-down SLEEP mode, a watchdog timer, code protection, and in-circuit programming capabilities, making it suitable for diverse low-power applications like automation, security, and sensor systems.
Microchip Technology PIC16C7704P Microcontroller 8-bit CMOS with A/D converter Specifications:
- Program Memory: 4K x 14 EPROM words
- Data Memory: 128 x 8 bytes RAM
- Operating Voltage: 2.5V to 6.0V
- Instruction Set: 35 instructions, 14-bit wide
- Clock Speed: DC - 20 MHz, 200 ns cycle
- Timers: Timer0 8-bit, Timer1 16-bit, Timer2 8-bit with prescaler
- ADC: 5 channels, 8-bit resolution, sample & hold
- Oscillator Options: Low Power (LP), XT, HS, RC
- Power Modes: Normal and Sleep
- Interrupts: Multiple sources, flag and enable bits
- Serial Port: SPI, I2C, USART with master/slave modes
- Code Protection: Programmable, supports in-circuit programming
- Package: PDIP, SOIC, TQFP, CERDIP, MQFP
- Features: Watchdog timer, brown-out detection, reset options, low power consumption

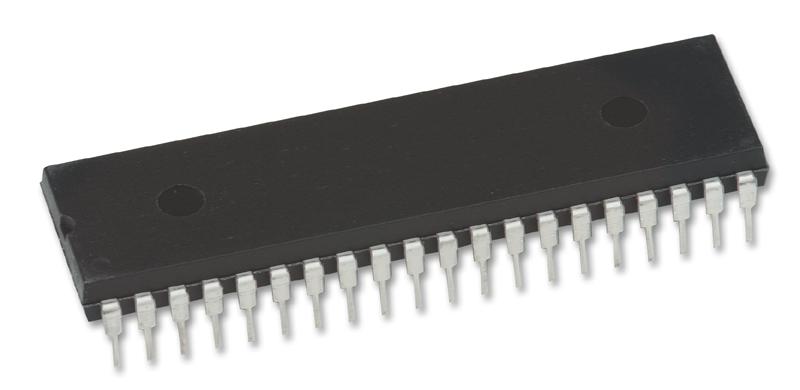

Buy the Buy Microchip PIC16C7704P Microcontroller Part Number PIC16C7704P Online
Order the Microchip PIC16C7704P microcontroller online today. Equipped with 4K of EPROM, 128 bytes RAM, multiple timers, advanced CMOS architecture, analog-to-digital conversion, and flexible oscillator options, it is ideal for low-power, high-performance applications. This device supports in-circuit programming, code protection, and various serial communication modes. Its robust features make it suitable for automation, security, and sensor systems, ensuring reliable operation and easy integration into your design.
Buy Microchip PIC16C7704P microcontroller now and experience unmatched reliability and performance with integrated ADC, timers, serial port, and low power modes.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16C7704P?
You can click on the BUY or RFQ button to purchase PIC16C7704P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16C7704P?
You can download the PIC16C7704P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16C7704P?
Microchip Technology
