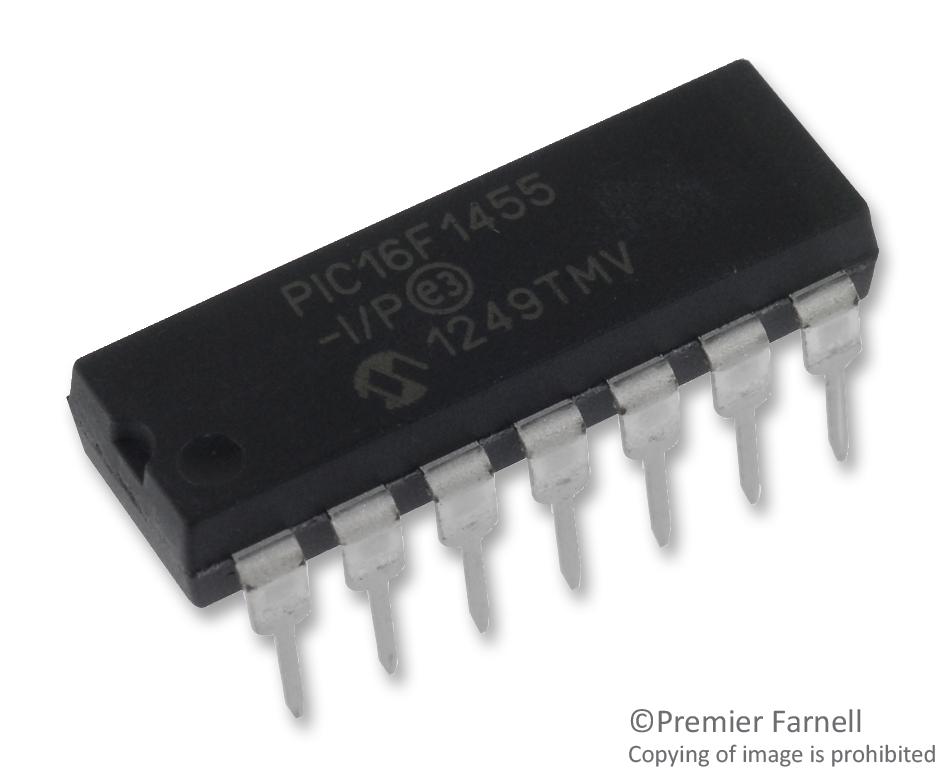

Microchip Technology PIC16F1455IP Microcontroller with USB
The PIC16F1455-I/P is a compact 14-pin 8-bit USB microcontroller with XLP technology, featuring a 49-instruction mid-range core, 16 deep stack, direct/indirect/relative addressing, 128 bytes non-volatile data memory, a 48 MHz internal oscillator, high-endurance flash memory with self read/write, USB 2.0 support with clock recovery, two standalone PWM modules, a complementary waveform generator, integrated temperature sensor, 10-channel 10-bit ADC, voltage references, two analog comparators, a 5-bit DAC, I²C/SPI interface, enhanced USART, three timers (two 8-bit and one 16-bit), extended watchdog, low-power resets (Power-on, Brown-out), and I/O with 25mA sink/source. Suitable for industrial, automotive, and communication systems. Proper ESD handling recommended; lead times may extend. Exempt from discounts.
Microchip Technology PIC16F1455IP Microcontroller with USB Specifications:
- Package: 14-pin TSSOP, QFN, SOIC, PDIP (various options)
- Microcontroller core: 8-bit, 49 instructions, 16 stack levels with overflow/underflow reset
- Memory: 16 bytes RAM, 128 bytes Data EEPROM, 48 MHz internal oscillator, 16KB Flash (endurance: high cycle)
- Clock: Internal HFINTOSC 16 MHz (calibrated), optional PLL for 24/32/48 MHz; LFINTOSC 31 kHz
- Peripherals: 2 PWM modules, complementary waveform generator, 10-channel 10-bit ADC, voltage references, 2 analog comparators, 5-bit DAC
- Communication: I²C, SPI, USART (full and half duplex, enhanced features)
- Timers: Timer0 (8-bit), Timer1 (16-bit with gate control), Timer2 (8-bit with prescaler and postscaler)
- Power: Extended WDT (1ms–256s), low-power modes, power-up timer, brown-out detection, stack overflow/underflow reset
- IO: 8 I/O pins with 25mA sink/source, weak pull-ups, interrupt-on-change
- Electrical: Operation voltage from 1.8V to 3.6V (LF); 2.3V to 5.5V (Full), ESD susceptible, handle carefully
- Package features: Various packages with detailed dimensions and land patterns available on Microchip website
- Supports system clock switching, active clock tuning, fail-safe clock monitor, and multiple power/reset configurations
- Application: Industrial, automotive, communication, sensor interfaces, and general-purpose embedded control systems
Buy the Buy Microchip PIC16F1455IP Part Number 1455 Online
Get your Microchip PIC16F1455IP today for reliable embedded control with USB 2.0, 48 MHz oscillator, 10-bit ADC, DAC, PWM, I2C, SPI, and timers. Perfect for industrial, automotive, and communication applications. Easy online ordering ensures swift delivery of this compact, feature-rich device. Designed for high endurance and low power operation, it supports system clock switching, fail-safe clock monitoring, and advanced reset options. Equip your project with Microchip's trusted microcontroller and experience performance and flexibility along with excellent technical support. Order now!
Order your Microchip PIC16F1455IP today and give your projects the dependable quality they deserve with advanced USB and analog features.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F1455IP?
You can click on the BUY or RFQ button to purchase PIC16F1455IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F1455IP?
You can download the PIC16F1455IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F1455IP?
Microchip Technology
