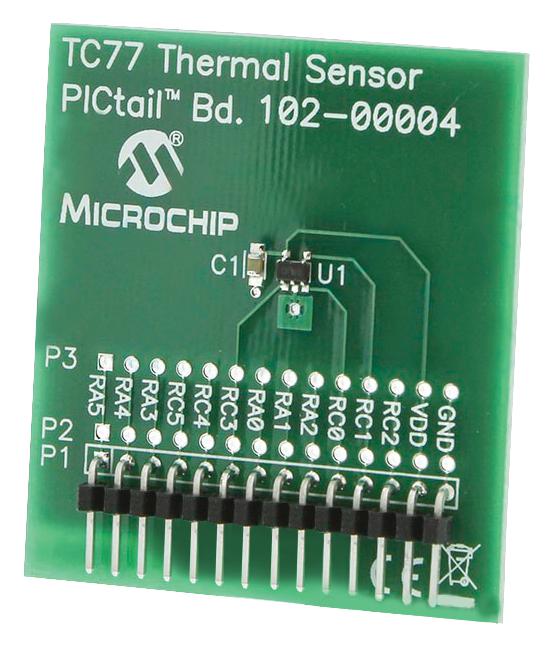

Microchip Technology TC77DMPICTL Thermal Sensor Module
The TC77DM-PICTL demonstration board showcases the integration of the TC77 digital thermal sensor with a microcontroller using the PICkit 1 Flash Starter Kit. It features a compact PCB with a standard 100 mil 14-pin header for straightforward interface, enabling easy temperature sensing in various systems. Including a PIC16F676 microcontroller with firmware for SPI communication and temperature conversion, it serves as a versatile tool for development, testing, and adding thermal sensing capabilities to industrial, sensing, instrumentation, and consumer electronics applications. It supports quick setup and reliable operation, ideal for engineers and developers.
Microchip Technology TC77DMPICTL Thermal Sensor Module Specifications:
- Microcontroller: PIC16F676, 14-pin flash-based 8-bit CMOS
- Sensor Interface: SPI communication
- Power Supply: +5V via USB
- Header: Standard 100 mil 14-pin header
- PCB Dimensions: Small footprint suitable for compact systems
- Firmware: Supports temperature conversion routines
- Connection: Easy interface with PICkit 1 Flash Starter Kit
- Application: Temperature sensing, industrial monitoring, instrumentation, consumer electronics
- Features: Compact design, reliable operation, standalone module capability
Buy the Microchip TC77DMPICTL – Reliable Thermal Sensor for Industrial Applications
Purchase the Microchip Thermal Sensor Module today and enhance your projects with precise temperature measurement. Easy to connect and integrate, this compact demo board is perfect for industrial, instrumentation, and consumer electronics applications. It offers reliable SPI communication with a PIC microcontroller, ensuring accurate readings and seamless operation. Whether working on prototypes or final products, this thermal sensing solution provides excellent performance, durability, and ease of use, making it an ideal choice for engineers and developers seeking quality and reliability in temperature monitoring systems.
Get Microchip TC77DM-PICTL today—built for industry-grade temperature sensing and long-lasting performance.
Frequently Asked Questions
Where can I buy Microchip Technology TC77DMPICTL?
You can click on the BUY or RFQ button to purchase TC77DMPICTL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC77DMPICTL?
You can download the TC77DMPICTL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC77DMPICTL?
Microchip Technology
