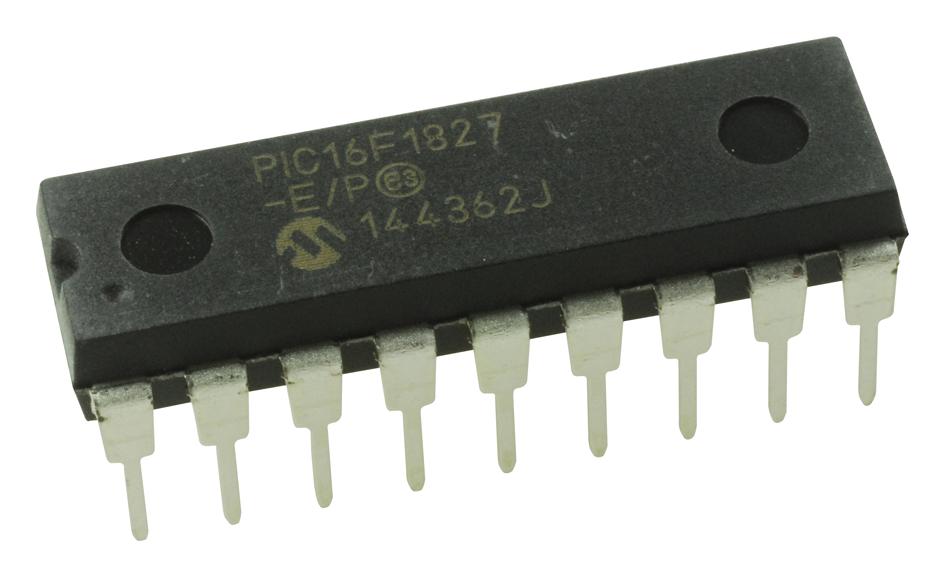

Microchip Technology PIC16F1827EP Enhanced 8-bit Microcontroller
The PIC16F1827-E/P is an advanced mid-range 8-bit MCU with 49 instructions, a 200ns cycle, and CMOS flash technology. It includes 7KB program memory, 384 bytes data memory, 16 I/O pins, two comparators, a 12-channel 10-bit ADC, 5-bit DAC, 2 timers, multiple CCP and ECCP modules, and supports in-circuit serial programming. Operating up to 32MHz from 1.8V to 5.5V, it features hardware interrupt with context saving, internal oscillator, EEPROM, brown-out reset, low-voltage detection, voltage references, and more. Ideal for industrial, automotive, consumer, motor control, lighting, medical, and security applications.
Microchip Technology PIC16F1827EP Enhanced 8-bit Microcontroller Specifications:
- Program Memory: 7KB Flash, 14-bit words
- Data Memory: 384 Bytes RAM
- Program Counter: 15-bit addressing (32K words)
- Operating Voltage: 1.8V to 5.5V
- Operating Frequency: Up to 32 MHz
- Instruction Cycle: 200 ns
- Supply Current (Active): Typical 70-1350 µA depending on voltage and frequency
- I/O Pins: 16 digital I/O with high sink/source current capability
- Timers: 4x 8-bit, 1x 16-bit Timer
- PWM Modules: 2 CCP, 2 ECCP with auto-restart and dead-band
- Analog: 12-channel 10-bit ADC, 5-bit DAC
- Voltage References: Internal FVR with selectable voltage levels
- Interrupts: Hardware with automatic context save, multiple sources
- EEPROM Data Memory: 256-byte, with write/erase cycles over 100,000
- Brown-out Reset and Low-Voltage Detect
- Oscillator: Internal RC, crystal, ceramic resonator, RC, or external clock
- In-Circuit Serial Programming: Supported
- Package Options: 28-pin QFN, SSOP, PDIP
Buy the Microchip PIC16F1827EP – Reliable 8-bit Microcontroller for Industrial Applications
Discover the power of the Microchip PIC16F1827EP, a robust 8-bit microcontroller designed for high-performance applications. Featuring 7KB flash, 384 bytes RAM, 16 I/O pins, two comparators, a 12-channel 10-bit ADC, and a 5-bit DAC, it supports up to 32 MHz operation from 1.8V to 5.5V. Equipped with hardware interrupt with context saving, internal oscillator, EEPROM, brown-out reset, and in-circuit serial programming, this device is ideal for industrial, automotive, motor control, lighting, medical, and security systems. Ensure your project benefits from Microchip's reliable and feature-rich platform.
Buy Microchip PIC16F1827EP now and experience reliable performance with advanced features suitable for diverse industrial, automotive, and consumer projects.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F1827EP?
You can click on the BUY or RFQ button to purchase PIC16F1827EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F1827EP?
You can download the PIC16F1827EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F1827EP?
Microchip Technology
