Microchip Technology PIC16F753IP Microcontroller
The PIC16F753/IP microcontroller features high-performance 8-bit CMOS architecture with RISC CPU, on-chip Flash memory, multiple timers, analog and digital modules, and extensive I/O capabilities. It supports low power consumption with sleep modes and power-saving features, making it ideal for embedded applications requiring reliability and versatility. Features include multi-channel A/D converters, digital-to-analog converters, comparators, operational amplifiers, PWM, and optional hardware limit timers. It is packaged in various forms including PDIP, SOIC, TSSOP, and QFN, suitable for compact designs.
Microchip Technology PIC16F753IP Microcontroller Specifications:
- Operating Voltage Range: 2.0V to 5.5V
- Program Memory: 2048 x 14 on-chip Flash
- Program Memory Endurance: 100,000 write cycles
- Data RAM: 128 x 8 bytes
- Instruction Speed: 20 MHz clock input, 200 ns cycle
- I/O Pins: 11 general-purpose, with high current source/sink capability (50mA)
- Analog Inputs: Multiple channels, with input select and internal references
- Analog Output: 9-bit DAC with 512 levels, buffered output
- Analog Comparators: 2 units with fast response times (50 ns)
- Operational Amplifiers: 3 units, factory calibrated
- Timers: 8-bit Timer0, 16-bit Timer1 with gate control, 8-bit Timer2, Hardware Limit Timer
- PWM: Up to 10-bit resolution, with adjustable period and duty cycle
- Special Features: Brown-out reset, Power-on reset, Watchdog Timer, Self read/write Flash, code protection
- Packages: PDIP 14-pin, SOIC 14- or 16-pin, TSSOP 14-pin, QFN 16-pin

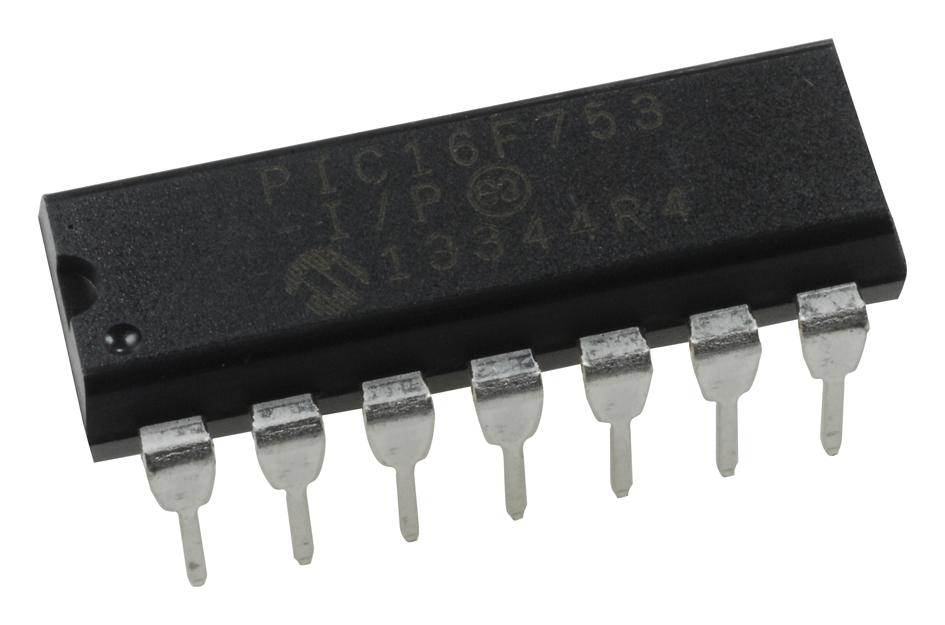

Buy the Buy Microchip PIC16F753 Microcontroller Part Number PIC16F753IP Online
Order your Microchip PIC16F753 microcontroller now online and benefit from its high-performance 8-bit CMOS architecture, versatile on-chip modules, low power sleep modes, and extensive I/O. Designed for reliable embedded applications, it offers fast instruction cycles, multiple timers, ADC, DAC, comparators, PWM, and security features like code protection and self read/write Flash memory. Available in various packages including PDIP, SOIC, TSSOP, and QFN, perfect for compact, efficient designs. Purchase today for seamless integration into your project with Microchip quality assurance.
Get Microchip PIC16F753 microcontroller today—high performance, extensive features, and reliable operation for your embedded project.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F753IP?
You can click on the BUY or RFQ button to purchase PIC16F753IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F753IP?
You can download the PIC16F753IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F753IP?
Microchip Technology
