Microchip Technology PIC16F77IP 16F77 Microcontroller
The PIC16F77 microcontroller offers high performance RISC architecture with 8K of FLASH program memory, 368 bytes of RAM, multiple timers, CCP modules, USART, SPI, I2C, and an 8-channel (or 5 for smaller devices) A/D converter. It features a flexible oscillator with options including crystal, RC, or low-power modes, and comprehensive reset features such as Power-on Reset, Brown-out Reset, and Watchdog Timer. Designed for embedded applications, it includes in-circuit serial programming, code protection, sleep mode for power efficiency, and multiple packages including 44-pin TQFP, SSOP, and MLF for versatile deployment.
Microchip Technology PIC16F77IP 16F77 Microcontroller Specifications:
- Program Memory: 8K words of 14-bit size
- Data Memory: 368 bytes RAM
- I/O Ports: 5 ports (A, B, C, D, E) in 40/44-pin packages, 3 ports in 28-pin packages
- Timers: Timer0 8-bit, Timer1 16-bit, Timer2 8-bit with prescaler and postscaler
- Capture/Compare/PWM Modules: 2 modules
- Serial Communication: SSP (SPI/I2C) and USART modules
- Analog Inputs: 8 channels (PIC16F74/77) or 5 channels (PIC16F73/76), 8-bit A/D converter
- Oscillator Options: Crystal, RC, Low Power modes, with start-up timers
- Power Management: Power-on Reset, Brown-out Reset, Watchdog Timer, Power-up Timer
- Power Modes: Normal, Sleep (low power), Wake-up via external reset, interrupts, or WDT
- Package Types: 28-pin PDIP, 40-pin PDIP, 28-pin SOIC, 44-pin PLCC, 28-pin MLF, 44-pin TQFP, 44-pin SSOP
- Operating Voltage: 2.0V to 5.5V
- Maximum Frequency: 20 MHz DC (Instruction cycle: 200 ns)
- Special Features: Code protection, ID locations, in-circuit serial programming, brown-out detection

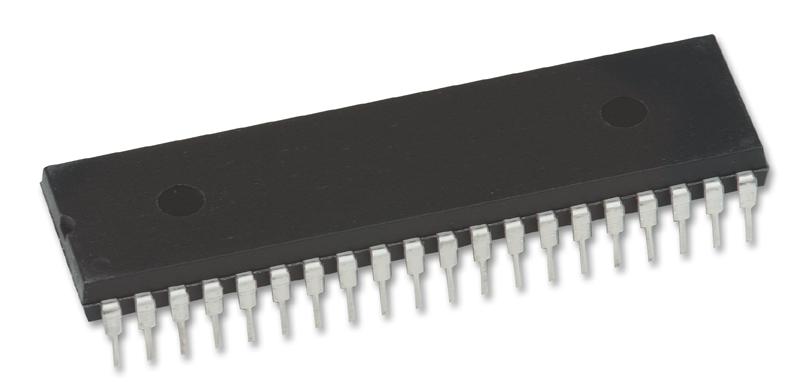

Buy the Microchip PIC16F77 U– Reliable Microcontroller for Industrial Applications
Order the Microchip PIC16F77 microcontroller today to unlock 8K of FLASH memory, 368 bytes RAM, multiple timers, communication modules, and flexible oscillator options. Designed for robust embedded applications, this high-performance device offers in-circuit serial programming, multiple package choices, and low power modes including Sleep for power-saving. Its comprehensive feature set ensures reliability, versatility, and efficiency in industrial, consumer, and automation systems. Purchase online now to accelerate your development with Microchip's trusted technology.
Buy Microchip PIC16F77 now and experience unmatched reliability, versatile features, and power efficiency for your embedded projects.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F77IP?
You can click on the BUY or RFQ button to purchase PIC16F77IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F77IP?
You can download the PIC16F77IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F77IP?
Microchip Technology
