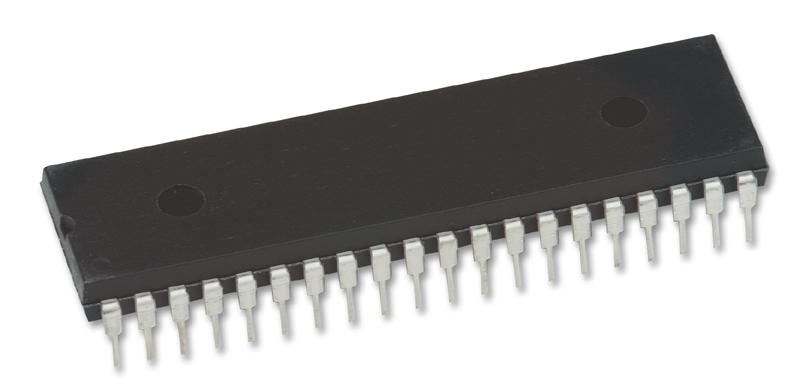

Microchip Technology PIC16F877AIP Microcontroller
The PIC16F87XA family features high-performance 8-bit microcontrollers with enhanced memory, multiple I/O ports, advanced communication modules including MSSP in SPI and I2C modes, A/D conversion, comparators, and flexible power management. They support multiple packages from 28 to 44 pins, operate up to 20 MHz, and include robust reset options, in-circuit debugging, and in-system programming capabilities. Ideal for embedded systems requiring low power, reliable communication, and versatile I/O, these MCUs are suitable for industrial, consumer, and IoT applications.
Microchip Technology PIC16F877AIP Microcontroller Specifications:
- Operating Voltage: 2.0V to 5.5V
- Maximum Frequency: DC — 20 MHz
- Memory: 4K/8K Flash, 192/368 bytes RAM, 128/256 bytes EEPROM
- I/O Ports: Ports A, B, C, D, E (depending on package)
- Timers: 3 (Timer0, Timer1, Timer2)
- Analog Inputs: 5 (28-pin), 8 (40/44-pin)
- Communication Modules: MSSP (SPI/I2C), USART
- Special Features: WDT, Brown-out Reset, Power-up Timer, In-System Programming, Debugging
- Package Types: PDIP, SOIC, SSOP, QFN, TQFP, PLCC
- Operating Temperature: -40°C to +85°C (industrial), extended versions up to +125°C
- Reset Sources: Power-on, Brown-out, MCLR, WDT
- Clock Options: Internal, External Crystal, RC oscillator
- Low Power Modes: Sleep, Idle
- Code Protection: Yes, configurable through device options
- PDP Package Lead Pitch: 0.65mm to 1.27mm depending on package
- Dimensions vary per package as per JEDEC standards
- Program and Data Memory: Segmented addressing with bank switching support
Buy the Buy Microchip PIC16F87XA Microcontroller Part Number DS39582C Online
Discover the versatile and high-performance Microchip PIC16F87XA microcontroller, featuring advanced communication interfaces like MSSP in SPI and I2C modes, a 10-bit ADC, multiple I/O ports, and comprehensive reset options. Perfect for industrial, consumer, and IoT applications, this family supports various packages including PDIP, SOIC, SSOP, QFN, and TQFP. Its robust features include an internal oscillator, in-system programming, debugging capabilities, and extensive power management to optimize efficiency and reliability in embedded systems. Buy online today for fast delivery and support.
Order your Microchip PIC16F87XA family microcontroller DS39582C today and enhance your embedded system project with high performance, flexible communication, and low power operation.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16F877AIP?
You can click on the BUY or RFQ button to purchase PIC16F877AIP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16F877AIP?
You can download the PIC16F877AIP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16F877AIP?
Microchip Technology
