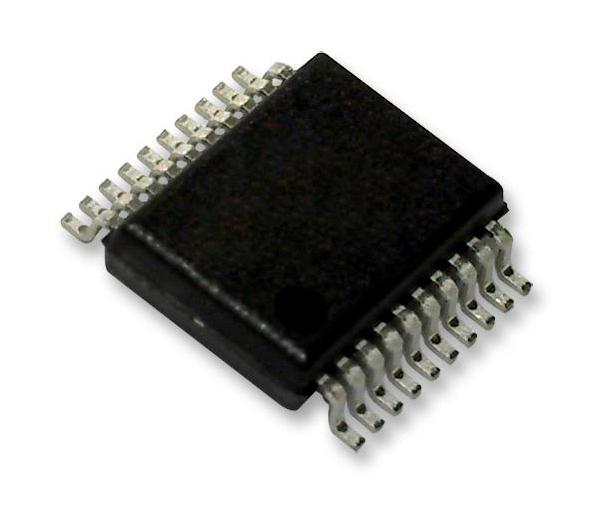

Microchip Technology PIC18F1330ISS High-Performance PIC Microcontroller
The PIC18F1230/1330 family offers high-performance 8-bit microcontrollers with advanced features suitable for power control and motor applications. Key features include a 14-bit Power Control PWM module with dead-time insertion, high-endurance Flash memory (4KB/8KB), a 10-bit ADC, and an enhanced UART supporting LIN/J2602 protocols. Multiple oscillator modes, low-power operation, and flexible clock options make these MCUs ideal for energy-efficient and high-speed applications. Extensive development support and robust reset mechanisms ensure reliable, efficient operation in various environments.
Microchip Technology PIC18F1330ISS High-Performance PIC Microcontroller Specifications:
- Program Memory: 4096 or 8192 Bytes (PIC18F1230/1330 respectively)
- Instruction Set: 75 instructions + 8 extended instructions
- Package Options: 18-Pin PDIP, 18-Pin SOIC, 20-Pin SSOP, 28-Pin QFN
- Operating Voltage: 2.0V to 5.5V
- Operating Temperature: -40°C to +85°C (industrial), -40°C to +125°C (extended)
- Clock Modes: Crystal, RC, EC, INTOSC, PLL-enabled modes
- PWM Module: 14-bit resolution, up to 6 channels, dead-time insertion
- ADC: 10-bit, programmable acquisition time, 4 channels
- Communication: Enhanced UART supporting LIN/J2602, automatic baud rate detection
- Low Power Modes: Run, Idle, Sleep with selective clock disabling
- Reset: Power-on, Brown-out, MCLR, Watchdog Timer, Stack resets
- Memory: Data RAM, Data EEPROM, separate program memory with dedicated control registers
- Peripheral Features: Timers, Analog Comparators, Oscillator options, External Interrupts
Buy the Buy Microchip PIC18F1230/1330 Part Number DS39758D Online
Discover the Microchip PIC18F1230/1330 series, featuring advanced PWM, high-endurance Flash, and multiple oscillator modes. Designed for power-sensitive and motor control applications, these MCUs deliver excellent performance in compact packages. Benefit from fast, reliable serial communication with LIN/J2602 support, a 10-bit ADC, and extensive development tools. Enable power-saving modes including Idle and Sleep, ensuring energy efficiency without compromising performance. Perfect for energy-efficient, high-speed, and precision motor control projects, order online today for rapid delivery and technical support.
Buy Microchip PIC18F1230/1330 now and experience unmatched power efficiency, high-speed performance, and flexible power management features for your embedded applications.
Frequently Asked Questions
Where can I buy Microchip Technology PIC18F1330ISS?
You can click on the BUY or RFQ button to purchase PIC18F1330ISS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC18F1330ISS?
You can download the PIC18F1330ISS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC18F1330ISS?
Microchip Technology
