Microchip Technology PKSERIALSPI1 SPI Device Tester
The PKSERIAL-SPI1 is a PICkit serial SPI demonstration board showcasing various SPI devices. It includes a 2K EEPROM, thermal sensor, 12-bit ADC and DAC, digital potentiometer, low gain PGA, and I/O expander. Designed for easy connection to PICkit serial analyzers and other development boards, it features test points for bus monitoring and connectors for direct SPI interface. This versatile demo kit offers users comprehensive insights into serial communication protocols and device operation, making it ideal for testing, development, and educational purposes in embedded systems and automation.
Microchip Technology PKSERIALSPI1 SPI Device Tester Specifications:
- Includes seven devices: 25LC020A 2K EEPROM, TC77 thermal sensor, MCP3201 12-bit ADC, MCP4822 12-bit DAC, MCP41010 digital potentiometer, MCP6S92 PGA, MCP23S08 8-bit I/O expander.
- Supports connection to PICkit serial analyzer or other development boards via connector P1.
- Features test points for monitoring SPI bus signals and device operation.
- Device operating modes: SPI slave mode with master mode capabilities demonstrated through PICkit analyzer.
- Integrated power supply options and connectivity for easy deployment in development environments.
- Designed for educational, testing, and prototyping applications in embedded systems.
- Includes demonstration kit with user guide, interface, analog devices, and CD-ROM support.
- Board dimensions and mounting compatible with standard development kits.

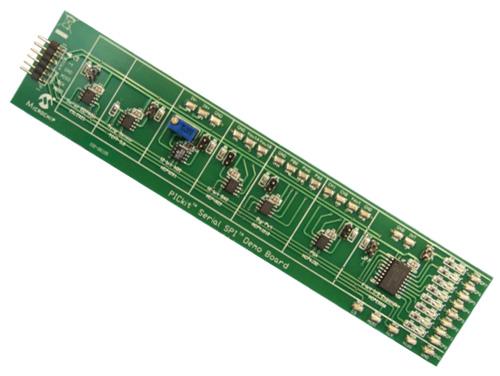

Buy the Microchip Series SPI Demo: PKSERIALSPI1
Enhance your embedded systems development with the SPI Device Tester. This versatile Microchip demo board includes EEPROM, sensors, ADC, DAC, potentiometers, and expanders, providing comprehensive tools for testing, prototyping, and learning. Connect easily to PICkit serial analyzers or other development platforms. Monitor signals with dedicated test points for accurate debugging and development. Suitable for engineers, students, and educators, it streamlines device operation analysis and protocol implementation, accelerating product development and fostering a hands-on understanding of serial communication technology.
Buy Microchip PKSERIALSPI1 now and experience unmatched reliability and performance in serial communication testing and development.
Frequently Asked Questions
Where can I buy Microchip Technology PKSERIALSPI1?
You can click on the BUY or RFQ button to purchase PKSERIALSPI1 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PKSERIALSPI1?
You can download the PKSERIALSPI1 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PKSERIALSPI1?
Microchip Technology
