Microchip Technology RNUFLSMA6 RF Coaxial Cable
The RN-UFL-SMA6 is a 6-inch coaxial cable featuring an U.FL connector on one end and a male SMA connector on the other, specifically designed for RF communication and wireless applications with reverse polarity antennas. This cable is ideal for connecting small form-factor wireless modules, antennas, and other RF devices, ensuring minimal signal loss and high performance. Made with high-quality materials, the cable supports stable and reliable signal transfer in various setups, and is suitable for applications requiring compact design and durable connectivity, with a temperature range of 0°C to 70°C for reliable operation in diverse environments.
Microchip Technology RNUFLSMA6 RF Coaxial Cable Specifications:
- Conductor Size: AWG 32
- Material - Silver Cover / Copper
- Conductor No.: 7
- Conductor Size: 0.08 mm
- Outer Diameter: 0.24 mm
- Insulation Thickness: 0.22 mm
- Jacket Diameter: 1.13 mm
- Material - FEP
- Shield Coverage: 91.3%
- Jacket Thickness: 0.13 mm
- Frequency Range: 2.0 GHz to 5.0 GHz
- Attenuation: 2.80 dB at 2.0 GHz, 3.10 dB at 2.4 GHz, 3.15 dB at 2.5 GHz, 4.85 dB at 5.0 GHz
- Impedance: 50 +3 Ohms
- Capacitance: 96 +3 pF/m
- Temperature Rating: 0°C to 70°C
- Maximum Voltage: 30V
- Conductor Resistance: 850 O/KM at 20°C
- Insulation Resistance: 1000 MQ/KM
- Spark Test Voltage: 2.5KV

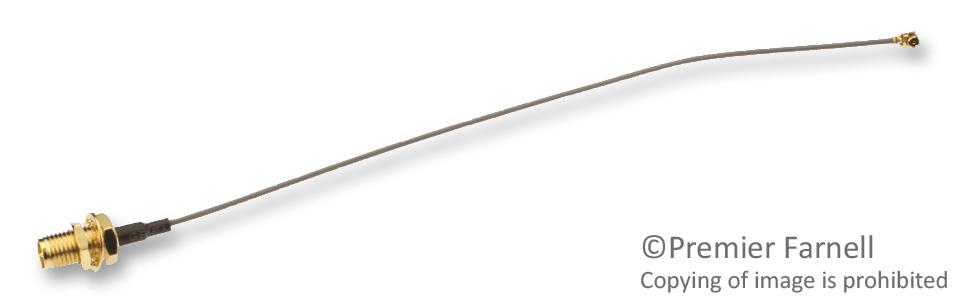

Buy the Buy Roving Networks RN-UFL-SMA6 Part Number RNUFLSMA6 Online
Purchase the Roving Networks RN-UFL-SMA6 coaxial cable online to ensure high-quality, reliable RF connections for wireless modules and antennas. This 6-inch cable features an U.FL connector on one end and a male SMA connector on the other, making it suitable for integrating small wireless devices, antennas, and RF components with ease. Designed with high-performance materials, it guarantees minimal signal loss, durability, and excellent impedance matching, operating effectively within a temperature range of 0°C to 70°C, ideal for various wireless and RF communication setups.
Buy Roving Networks RN-UFL-SMA6 now and experience reliable high-frequency RF connectivity for wireless applications.
Frequently Asked Questions
Where can I buy Microchip Technology RNUFLSMA6?
You can click on the BUY or RFQ button to purchase RNUFLSMA6 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part RNUFLSMA6?
You can download the RNUFLSMA6 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of RNUFLSMA6?
Microchip Technology
